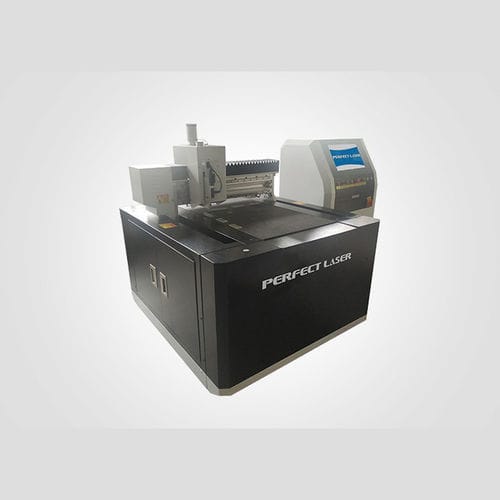

Knife cutting and engraving machine PEG-5050for glasspanelCNC
Add to favorites
Compare this product
Characteristics
- Technology
- knife
- Material
- for glass
- Product handled
- panel
- Control type
- CNC
- Associated function
- engraving
- Applications
- for industrial applications
- Configuration
- compact, bench-top
- Other characteristics
- automatic, portable, with CCD camera, ultra thin glass, with vacuum base, with optical registration, high-precision
- X travel
Min.: 550 mm
(21.65 in)Max.: 550 mm
(21.65 in)- Y travel
Min.: 500 mm
(19.69 in)Max.: 500 mm
(19.69 in)- Maximum cutting height
Min.: 5 mm
(0.2 in)Max.: 5 mm
(0.2 in)- Minimum cutting height
Min.: 0.1 mm
(0 in)Max.: 0.1 mm
(0 in)- Cutting speed
Min.: 0 m/s
(0 ft/s)Max.: 1.333 m/s
(4.374 ft/s)- Repeatability
0.04 mm
(0.0016 in)- Overall length
Min.: 1,400 mm
(55 in)Max.: 1,400 mm
(55 in)- Maximum width
Min.: 1,230 mm
(48 in)Max.: 1,230 mm
(48 in)- Minimum width
Min.: 100 mm
(4 in)Max.: 100 mm
(4 in)- Height
1,350 mm
(53 in)- Weight
Min.: 950 kg
(2,094.39 lb)Max.: 950 kg
(2,094.39 lb)
Description
Product Description
The PEG-5050 ultra-thin CNC glass cutting and engraving machine is designed for precision cutting of architectural and decorative glass used in furniture and interior applications. It features an air-flotation marble table for long-term flatness, CCD automatic positioning, and knife-wheel cutting technology enabling single-pass shapes with minimal secondary processing.
Key Features
Applications
Commercial & Logistics Information
Technical Specifications
The PEG-5050 ultra-thin CNC glass cutting and engraving machine is designed for precision cutting of architectural and decorative glass used in furniture and interior applications. It features an air-flotation marble table for long-term flatness, CCD automatic positioning, and knife-wheel cutting technology enabling single-pass shapes with minimal secondary processing.
Key Features
- CCD automatic single-head positioning with coaxial adjustable lighting for high-precision alignment (field of view 6.04×5.12 mm; 1.3M pixels; 40–60×).
- Knife-wheel cutting technology with optional manual adjustment for robust cut profiles on ultra-thin glass.
- X, Y, Z axes driven by servo motors for repeatable accuracy and smooth motion.
- Mechanical positioning pin (upper-left) combined with vacuum adsorption for stable workholding.
- Portable/transportable frame with adjustable cutting origin, origin-correction function and extensive nesting/pattern library.
- Multi-zone cutting with automatic toolpath optimization, blow/suck conversion (foot switch) and pause/resume during cutting.
- Cutting program memory: 360 groups; per-piece storage up to 16 sizes; supports CAD import and automated size batch cutting.
Applications
- Architectural glass panels
- Mirror glass for cosmetics and decor
- Furniture glass (shelves, doors, decorative insets)
- Patchwork/mosaic mirror glass
- Round craft glass, clock glass and other ultra-thin decorative glass items
Commercial & Logistics Information
- Minimum Order Quantity: 1 Unit
- Price: Negotiable
- Packaging: Sea-worthy or air-worthy packing
- Delivery Time: 3–7 working days (subject to confirmation)
- Payment Terms: L/C, T/T, Western Union, MoneyGram
- Supply Capacity: 400 sets per month
Technical Specifications
- Product Name: Ultra-thin CNC Glass Engraving & Cutting Machine
- Model: PEG-5050
- Brand: Perfect Laser
- Power: 3.1 kW
- Max Cut Dimension: 550 × 500 mm; Minimum processing size: 100 × 100 mm
- Cutting Thickness: 0.1–5 mm
- Cutting Accuracy: ±0.03–±0.05 mm (straight line)
- Marble table flatness tolerance: ±0.015 mm
- Cutting Speed: 0–80 m/min (adjustable)
- Total Weight: approx. 950 kg
- Machine Dimensions: 1400 × 1230 × 1350 mm
- Oil Supply: Automatic lubricating device
- Positioning: Mechanical positioning pin + vacuum adsorption
- Drive & Guiding: Lead screw and guide rail (Taiwan Shangyin)
- Bearings: Japan NSK
- Key components: Pneumatics Japan SMC; Electrical parts Taiwan SHANHO; Power supply Japan OMRON; Buttons/indicators IDEC; Computer: ASUS
- CCD Parameters: FOV 6.04 × 5.12 mm; 1.3M pixels; gain 40–60×; coaxial adjustable light source
- Effective target sizes: straight cursor 0.3–1.6 mm; round 0.3–1.0 mm (special marks require testing)
- Origin: China; Certifications: CE / ISO / TUV / SGS
Catalogs
No catalogs are available for this product.
See all of Perfect Laser Co., Ltd. (China)‘s catalogsOther Perfect Laser Co., Ltd. (China) products

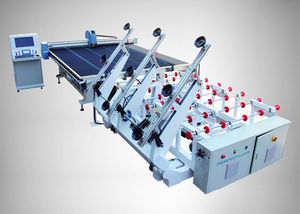

Glass Cutting Machine
