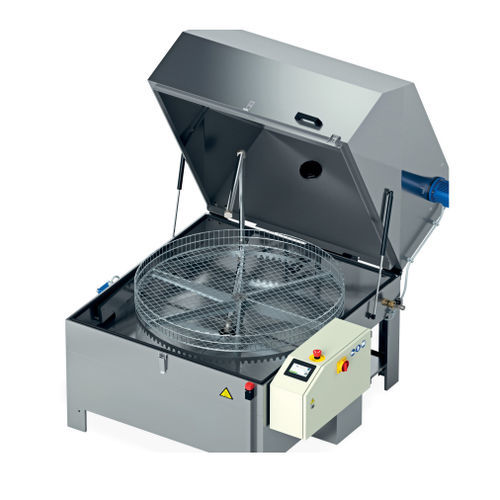

Water cleaning system T 1 series

automatic

Cleanline is a system ideal for the automatic washing of small and medium size mechanical parts. The washing is carried out by the action of upper, lower and side jets. The slow rotation of the basket is ensured by a gear motor. A PLC and touchscreen display manage- ment enables numberless customisations thanks to a wide range of accessories. Equipment Included in Cleanline T 100 and120 • Electric timed steam extraction • Reinforced basket in electrowelded net with external edge of galvanized steel • Electric pump in stainless steel AISI 304 with special Gaskets • Filter in stainless steel AISI 304 on the pump suction • Tank edge Gasket in EPDM • Electrical resistor in stainless steel Incoloy • Mechanical rotation of the basket by a gear motor • IP 65 electric system with PLC (DGT V4) • Structure and plates in stainless steel • Flexible suction and pump delivery pipes • Tank liquid minimum level control for the protection of pump and resistor • Tank liquid maximum level control and solenoid valve for automatic water intake • Safety limit switch on the cover opening • Laser-drilled washing pipes in stainless steel (more pressure, less maintenance) • Weekly programming for the activation of heating and oil separator (if installed) HT Version offers • Electric steam extraction • Thermal insulation with panels in stainless steel AISI 430 • Safety limit switch with cover opening lock during the cycle • Panels under the basket with trap filter for grease and chip collection
