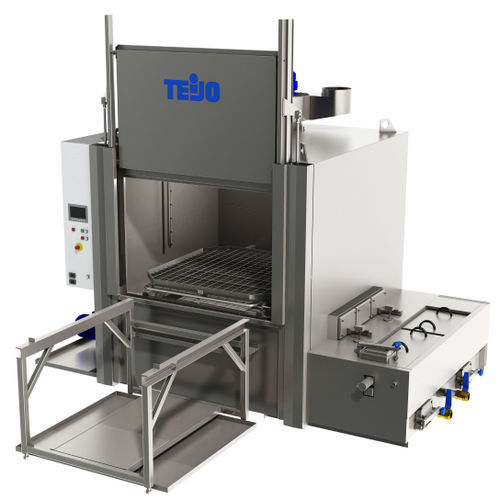

Alkaline cleaning machine C series

spraywaterindustrial

In automated TEIJO multi-stage cleaning machines, a rotary spray system sprays hot cleaning liquid onto stationary parts in a single chamber. Machine parts: • CLEANING CHAMBER WITH DOOR • AUTOMATED SPRAY SYSTEM • TWO OR THREE LIQUID TANKS • HEATING AND FILTRATION SYSTEM • AUTOMATED WATER REFILL • AUTOMATED DOOR OPENING • LOAD CARRIAGE AND LOAD GRATING • ELECTRICAL CONTROL BOX WITH LOGIC CONTROL Why choose a multi-stage machine? Because of the increasing demands regarding cleanliness and surface finishing, just one cleaning cycle is not enough; one or two additional rinsing stages are required to achieve the desired results. Closed cleaning liquid system In TEIJO cleaning machines, cleaning liquid is circulated in a closed system where it is filtered and reused. The liquid consists of water and 1-5% of cleaning detergent depending on how dirty the parts to be washed are. The service life of the liquid varies between one week and several months depending on: • HOW DIRTY THE PARTS TO BE WASHED ARE • DEGREE OF UTILIZATION • TYPE OF PROCESS • REQUIRED RESULT • FILTRATION SYSTEM • OIL SEPARATION SYSTEM Examples of the many functions of TEIJO multi-stage cleaning machines: • ALKALINE CLEANING AND RINSING 2-3 STAGES • WAX REMOVAL AND RINSING 2-4 STAGES • ALKALINE CLEANING, DESCALING AND RINSING 3-5 STAGES • PHOSPHATING AND RINSING 3-5 STAGES Applications Multi-stage cleaning machines have many industrial uses, such as pre-cleaning and cleaning. PRE-CLEANING • CLEANING OF COMPONENTS BEFORE WELDING • REMOVAL OF ANTI-CORROSIVE TREATMENT BEFORE MACHINING • CLEANING OF ENGINES AND ENGINE PARTS • DESCALING OF CYLINDER HEADS ETC.
