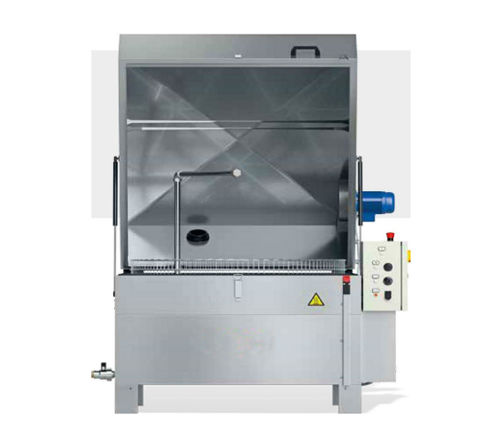

Steam washing system P series

automaticrotary basket

Cleanline P100 og P120 a system for automatic washing of mechanical parts. The washing is carried out by the action of upper, lower and side jets. The basket rotates through a gear motor. The board is electromechanical. Operators can set the tank liquid temperature as well as the length of the treament cycle. Equipment Included Cleanline P 100 and P120 machines • Electromechanical control board • Mechanical rotation of the basket by a gear motor • Electric timed steam extraction • Reinforced basket in electrowelded net with external edge of galvanized steel • Tank minimum level control for the protection of pump and resistor • Electric pump in stainless steel with special Gaskets • Filter in stainless steel AISI 304 on the pump suction • Tank edge Gasket • Electrical box of painted metal • Safety limit switch on the cover opening • Structure and plates in stainless steel • Liquid heating with electric resistor in stainless steel Incoloy • Laser-drilled washing pipes in stainless steel (more pressure, less maintenance) • Flexible suction and pump delivery pipes (easy maintenance) Additional accessories • Basket in stainless steel AISI 304 [ 1 ] • Disc oil separator [ 2 ] • Panels under the basket with grease collecting filters [ 3 ] • Kit for use with abrasive contaminants • Pipes with blade-nozzle in stainless steel
