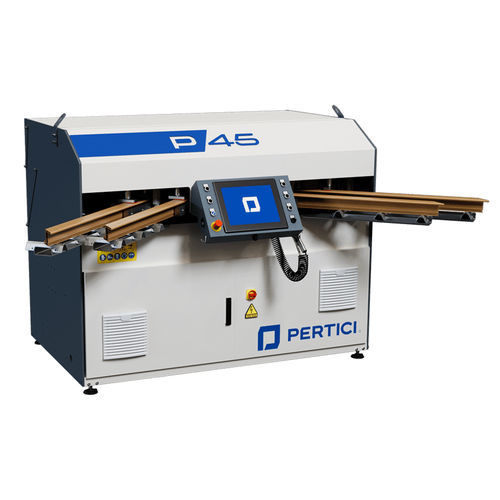

PVC end milling machine P45

for PVC profilesfor profiles

Overview
The CNC end-milling machine P45 is designed to perform a partial contouring operation on the profile head to prepare extruded profiles for subsequent welding, enabling a seamless fusion. Milling is executed following the profile geometry previously loaded into the 3D CAD-CAM environment, which reduces programming errors and the risk of collisions.

Key features

• Partial contouring of the profile head to prepare for welding
• Seamless fusion after welding thanks to precise milling preparation
• Machine equipped with 3 interpolated axes for complex toolpaths
• Specially shaped milling cutter to follow profile geometry
• Capacity to process up to 4 profiles simultaneously to optimize cycle time
• 3D CAD-CAM control: editable operations with configurable speed and feed parameters
• 3D simulation displays actual material removal, limiting programming errors and collisions

Ideal for

• PVC

Associated media
Product sheet includes illustrations and a demonstration video showing the machine in operation.

Technical specifications

• Model: P45
• Machine type: CNC end-milling machine
• Primary operation: partial contouring on profile head (end milling)
• Axes: 3 interpolated axes
• Milling cutter: specially shaped cutter for profile following
• Profiles capacity: up to 4 profiles simultaneously
• Control / Software: 3D CAD-CAM (editable operations, configurable speed and feed parameters)
• Purpose: prepares profiles for welding to achieve seamless fusion; reduces programming errors and collisions via 3D simulation
• Suitable material: PVC
