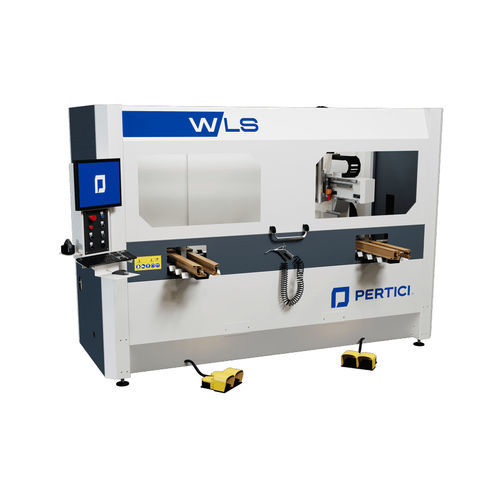

PVC end milling machine WLS

for profilesautomaticfor PVC profiles

Overview
The CNC end milling machine WLS is designed to perform specific end milling operations on PVC profile heads. This machining produces an innovative 90° angle coupling for window frames, reproducing the traditional wooden-frame corner joint. The result improves aesthetics and removes the need for manual cleaning on the finished side, as the joint is completed after the standard welding operation.

Operation
Profiles are clamped in pairs in two dedicated clamps and machined as the vertical and horizontal members of the frame. Different machining types are handled by a series of shaped tools stored in a dedicated tool magazine. The machine can perform end machining on both the internal and external sides of the window according to production requirements.

Ideal for

• PVC

Multimedia
Product images and a demonstration video are available showing the WLS in operation.

Technical specifications

• Type: CNC end milling machine for profile heads
• Purpose: specific end milling to produce an innovative 90° angle coupling for window frames
• Aesthetic benefit: joint finished after welding, reducing need for side cleaning
• Clamping: profiles clamped in pairs in two special clamps
• Machining modes: profiles machined as vertical and horizontal members of the frame
• Tooling: shaped tools housed in a dedicated tool magazine to manage different machining types
• Flexibility: capable of end machining on both internal and external sides of the window
• Material compatibility: suitable for PVC profiles
