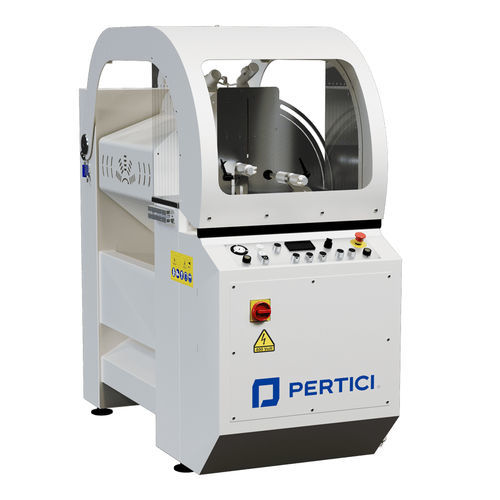

Circular saw R series

horizontalfor PVCfor aluminum

Overview
The 55 series are single-head frontal saws equipped with a Ø 550 mm blade and a 4 HP blade motor. Two versions are available (R55 and RE55), differing in the head rotation and inclination control systems.

Cutting unit inclination

• R55: pneumatic inclination of the cutting unit with fixed angles at 20°, 45° and 90° to the right and left. Intermediate angles are set manually via a degree scale; the angle reading is shown on the digital display.
• RE55: electronic inclination controlled by a linear drive for very high positioning accuracy. Continuous angle control within a range of +/- 20°. Cutting angles are entered through a 7" touchscreen operator panel.

Clamping, lubrication and protection

• Standard horizontal clamps for secure profile clamping; optional configuration with 4 clamps including 2 vertical cylinders.
• Spray lubrication system for the blade.
• Integral pneumatic protection for the cutting unit.

Ideal for

• PVC
• Aluminium

Technical specifications

• Series: 55 series (single-head frontal saws)
• Blade diameter: Ø 550 mm
• Blade motor power: 4 HP
• Head rotation: two versions with different head-rotation systems
• R55 inclination: pneumatic, fixed angles 20° / 45° / 90° (right and left); intermediate angles manual via degree scale; angle readout on digital display
• RE55 inclination: electronic linear drive for high positioning accuracy; continuous angle range ±20°; 7" touchscreen operator panel for angle input
• Clamping: horizontal clamps standard; optional 4 clamps with 2 vertical cylinders
• Blade lubrication: spray system
• Cutting unit protection: pneumatic integral protection
• Applications: PVC, Aluminium
