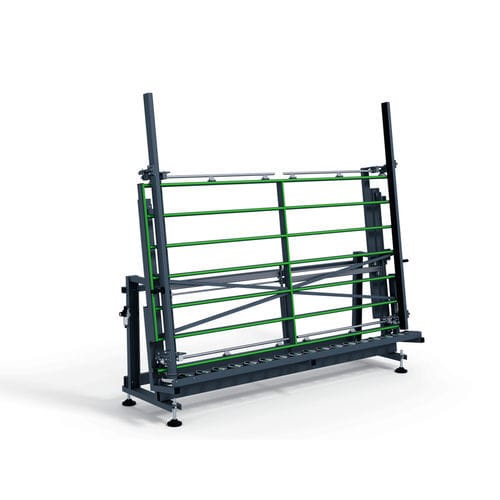

Glazing bench GLZ 4000

Overview
The GLZ 4000 is a vertical bench designed for fitting glass into window frames and for inspection tests. It reproduces working conditions for window frames and is suitable for PVC and aluminium frames.

Main functions and features

• Pneumatically operated self-centering system with two movable clamping bars to position and hold the frame for glazing.
• Robust steel frame with four levelling feet for stable, adjustable support.
• Hard anti-friction PVC support surface to ensure smooth frame movement during operations.
• Sturdy roller conveyor at the base for horizontal transfer of frames.
• Rear opening locking bars to simplify transfer of frames to storage or processing stations.
• Optional height adjustment to improve operator ergonomics for various frame sizes.

Ideal for

• PVC frames
• Aluminium frames

Versions
The GLZ 4000 is supplied in a version with width 3,000 mm and height 2,650 mm.

Technical specifications

• Model: GLZ 4000
• Product type: Vertical bench for glazing and frame inspection
• Applications: Fitting glass into window frames; inspection and simulation of frame use conditions
• Self-centering: Pneumatic cylinders
• Clamping: Two clamping bars
• Frame construction: Solid steel frame
• Levelling feet: 4
• Support surface: Hard anti-friction PVC
• Conveyor: Roller conveyor at base for horizontal movement
• Rear locking: Rear opening locking bars for transfer to storage stations
• Ergonomics: Optional height adjustment
• Available size: Width 3,000 mm × Height 2,650 mm
• Suitable materials: PVC, Aluminium
