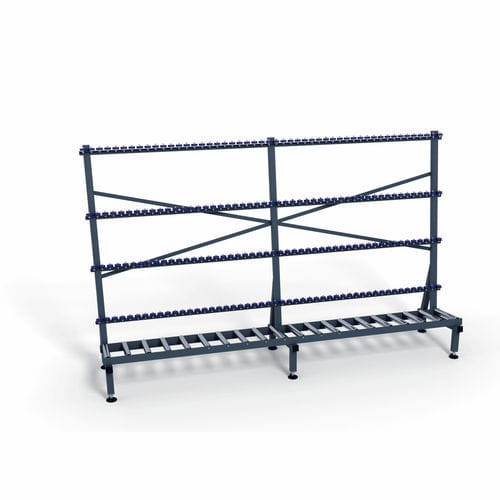

Roller conveyor RUVE 3000verticalhandlingtransfer
Add to favorites
Compare this product
Characteristics
- Technology
- roller
- Form
- vertical
- Function
- handling, transfer
- Construction
- height-adjustable, roller
- Transported product
- for metal plates, for plastics
- Effective width
400 mm
(16 in)- Length
3 m
(9'10" )
Description
Product overview
RUVE 3000 is a vertical roller conveyor 3 m long designed to transfer sashes, frames or finished windows and doors between assembly stations. The unit features a solid steel frame and height adjustment via six levelling feet for stable installation.
Support and construction
The horizontal support surface comprises 20 steel rollers with a support width of 400 mm. Vertical support is provided by at least four anti-scratch rubber roller guides with a diameter of 50 mm, ensuring safe handling of both heavy and small window frames.
Applications
Technical specifications
RUVE 3000 is a vertical roller conveyor 3 m long designed to transfer sashes, frames or finished windows and doors between assembly stations. The unit features a solid steel frame and height adjustment via six levelling feet for stable installation.
Support and construction
The horizontal support surface comprises 20 steel rollers with a support width of 400 mm. Vertical support is provided by at least four anti-scratch rubber roller guides with a diameter of 50 mm, ensuring safe handling of both heavy and small window frames.
Applications
- Transfer between assembly stations for sashes and frames
- Handling of finished windows and doors
Technical specifications
- Model: RUVE 3000
- Type: Vertical roller conveyor
- Length: 3 m
- Frame: Solid steel
- Height adjustment: 6 levelling feet
- Horizontal support: 20 steel rollers, support width 400 mm
- Vertical guides: Minimum 4 anti-scratch rubber roller guides, Ø 50 mm
- Intended for: PVC, Aluminium
