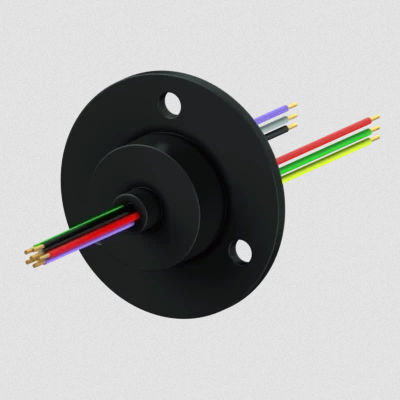

Capsule slip ring SVTS A 01-S-X-00-06

for packagingfor roboticsfor wind turbine

These units are available in many standard configurations from 2 to 18 circuits. Due to their small ring diameter, the SVTS A 01 series grants low peripheral speed between bushes and rings, as well as reduced dynamic imbalance that means very low wear and long life. Thanks to the small ring diameter they can transmit high frequency signals such as video. Advantages Ideal for video, high frequency signals High data rate Gold alloy rings and brushes Low friction torque High lifetime and reliability Combinable with fluidic rotary joints and FORJ Compliant to CE and ROHS Benefits Optimal signal transmission (gold-gold technology) Cost-effective Circuits * - 24 x 1A Outside Diameter - 15.00 mm Overall Length (L) - 34.00 mm Protection rating - IP51 Data Transfert - <=100Mbit/s Mounting - Flange / Capsule Mechanical features Nominal speed - 0-250 rpm Temperature range - -20°C to +80°C (-40°C as option) Contact - gold-gold (alloy) Bearings - Miniature high-precision stainless steel ball bearings Connector - - Mounting - ABS
