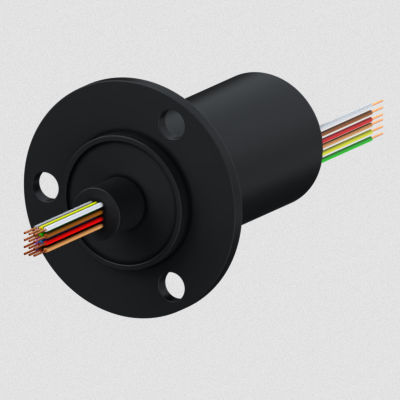

Capsule slip ring SVTS A 04-S-X-00-18-E1G
for packagingfor roboticsfor medical equipment

capsule slip ring
capsule slip ring
capsule slip ring
Add to favorites
Compare this product


Characteristics

Construction
capsule
Applications
for packaging, for robotics, for medical equipment, for wind turbine
Material
gold
Other characteristics
compact, standard, IP65
Voltage

240 V

Primary current

2 A, 6 A, 8 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 250 rpm
(1,571 rad.min-1)

Description

Compact, cost effective, O.D. 25 mm, high circuit capacity from 18 up to 56 circuits with Ethernet/Fieldbus option Slip ring specially suited to transmit critical signals, such as hi frequency and data rate, low current and voltages (strain gauges, thermocouples, measuring equipment, etc.) and offering a optionnal fieldbus or Ethernet channel (EtherCAT, Profinet, Profibus, etc.). These units are available in many standard configurations from 18 to 56 circuits. Due to their small ring diameter, the SVTS A 03 series grants low peripheral speed between bushes and rings, as well as reduced dynamic imbalance that means very low wear and long life. SVTS A 03 models offer E1M and E1G options embedding shielded twisted pairs and adapted rings shapes to suit high data rate applications up to 1Gb/s. E1M options has 2 shielded twisted pairs and is suitable for 100 Base-TX applications (Ethernet 100Mb/s, EtherCat, Profinet, ...), option E1G has 4 shielded twisted pairs to meet 1000 Base-T applications needs. Offering alongside multiple power/signal cominations they are also available in IP51 or IP65 version Option : 100 Base-TX or 1000 Base-T channel with RJ45 plug High data rate Gold alloy rings and brushes Low friction torque High lifetime and reliability Compliant to CE and ROHS Benefits Optimal signal transmission (gold-gold technology) Cost-effective
