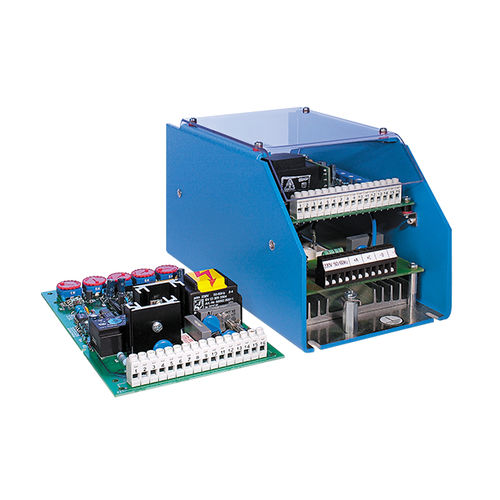

DC motor drive SGP
thyristorswith speed control

DC motor drive
DC motor drive
Add to favorites
Compare this product


Characteristics

Type
thyristors
Other characteristics
motor, with speed control
Power

Max.: 1,800 W

Min.: 250 W

Intensity

Max.: 16 A

Min.: 3 A

Description

Features •for motors with external and permanent excitation •one-quadrant operation •control range with armature voltage control 1:30 •control range with tachometer control 1:100 •degree of protection IP 00 Functions •half-controlled symmetrical •bridge circuit with excitation voltage source •adjustable current controller and •thus very suitable for permanently excited motors Options •with isolating module (P) •pluggable with pin connector DIN 41617 (ST) •pluggable with isolating module (ST/P) Preferred application areas •conveyors •printing machines •pumps •rotary table drives •welding wire feed mechanisms •packaging machines •others
