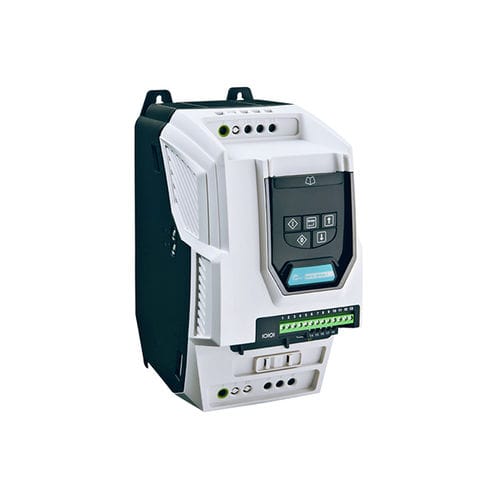

Vector control frequency inverter VersiDrive i Pro/3Pro
verticalfor synchronous motorIP20

vector control frequency inverter
vector control frequency inverter
Add to favorites
Compare this product


Characteristics

Type
vector control
Mounting
vertical
Applications
for synchronous motor
Protection class
IP20
Other characteristics
with speed control, open-loop, Modbus, torque control, CAN BUS
Power

Max.: 37,000 W

Min.: 750 W

Intensity

Max.: 24 A

Min.: 4 A

Output frequency

Max.: 500 Hz

Min.: 0 Hz

Description

Features •U/f-characteristics control •open loop vector control (200% start torque) •closed loop encoder control (plug-in) •open und closed loop control for synchrounous motors •PTC-input •max. rotating field frequency 500Hz •safety stop according to IEC 61508 SIL2 •integrated braking chopper •degree of protection IP20 •integrated mains filter •integrated Modbus RTU and CANbus Functions •control and setpoint entry via terminals, •operating units and bus systems •PWM clock frequency 4 - 32kHz •sensorless speed and torque control •potential-free control and signalling contacts •150% overload for 60s •integrated PI controller •detailed trouble check via parameter P0-13 •easy PLC functionality Options: (please see accessories) •remote control module •additional input and output module •RJ45-cable and cable splitter •encoder extension module •communication- and bus-plug-ins •bluetooth-memory stick •braking resistors •software for parameterization and operating •license key for PLC Preferred application areas •electric pumps •heat pumps •vacuum pumps •ventilators and fans •cranes •travelling cranes •extraction systems •compressors •stirrers •centrifuges •saws •conveyors •elevators and hoists •woodworking machines •grinding machines •textile machines •packaging machines •printing machines •drives with high inertia •others
