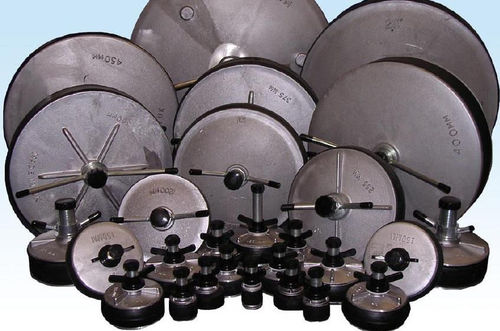

Circular plug

cylindricalroundthreaded

Description
All products are manufactured under strict quality controls to ensure maximum reliability and efficiency. All plugs comply with standard BS8005 and feature a central drain, aluminium plates and stainless steel bolts. Mechanical plugs are suitable for low-pressure applications and for sealing pipelines.

Availability
Available

Variants and prices

• Mechanical plug Ø 1.5" aluminium. Hollow threaded spindle 1/2" BSP. Diameter range 37–48 mm. Price: 9.46
• Mechanical plug Ø 2" aluminium. Hollow threaded spindle 1/2" BSP. Diameter range 48–62 mm. Price: 9.69
• Mechanical plug Ø 2.5" aluminium. Hollow threaded spindle 1/2" BSP. Diameter range 62–70 mm. Price: 10.69
• Mechanical plug Ø 3.00" aluminium. Hollow threaded spindle 1/2" BSP. Diameter range 71–87 mm. Price: 11.88
• Mechanical plug Ø 3.5" aluminium. Hollow threaded spindle 1/2" BSP. Diameter range 89–94 mm. Price: 13.86
• Mechanical plug Ø 4.00" aluminium. Hollow threaded spindle 1/2" BSP. Diameter range 96–105 mm. Price: 15.24
• Mechanical plug Ø 4.5" aluminium. Hollow threaded spindle 1/2" BSP. Diameter range 112–120 mm. Price: 15.84
• Mechanical plug Ø 5.00" aluminium. Hollow threaded spindle 1/2" BSP. Diameter range 123–137 mm. Price: 16.43
• Mechanical plug Ø 6.00" aluminium. Hollow threaded spindle 1/2" BSP. Diameter range 150–166 mm. Price: 17.82
• Mechanical plug Ø 7.00" aluminium. Hollow threaded spindle 1" BSP. Diameter range 166–185 mm. Price: 59.40
• Mechanical plug Ø 8.00" aluminium. Hollow threaded spindle 1" BSP. Diameter range 196–217 mm. Price: 59.40
• Mechanical plug Ø 9.00" aluminium. Hollow threaded spindle 1" BSP. Diameter range 208–231 mm. Price: 87.12
• Mechanical plug Ø 10.00" aluminium. Hollow threaded spindle 1" BSP. Diameter range 234–260 mm. Price: 99.00
• Mechanical plug Ø 12.00" aluminium. Hollow threaded spindle 1" BSP. Diameter range 288–316 mm. Price: 118.80
• Mechanical plug Ø 14.00" aluminium. Hollow threaded spindle 1" BSP. Diameter range 351–384 mm. Price: 217.80
• Mechanical plug Ø 15.00" aluminium. Hollow threaded spindle 1" BSP. Diameter range 364–401 mm. Price: 237.60
• Mechanical plug Ø 16.00" aluminium. Hollow threaded spindle 1" BSP. Diameter range 396–432 mm. Price: 297.00
• Mechanical plug Ø 18.00" aluminium. Hollow threaded spindle 2" BSP. Diameter range 443–489 mm. Price: 356.40
• Mechanical plug Ø 20.00" aluminium. Hollow threaded spindle 2" BSP. Diameter range 486–525 mm. Price: 415.80
• Mechanical plug Ø 22.00" aluminium. Hollow threaded spindle 2" BSP. Diameter range 525–561 mm. Price: 455.40
• Mechanical plug Ø 24.00" aluminium. Hollow threaded spindle 2" BSP. Diameter range 598–648 mm. Price: 495.00
• Mechanical plug Ø 26.00" aluminium. Hollow threaded spindle 2" BSP. Diameter range 667–704 mm. Price: 495.00
• Mechanical plug Ø 30.00" aluminium. Hollow threaded spindle 2" BSP. Diameter range 743–787 mm. Price: 653.40
• Mechanical plug Ø 32.00" aluminium. Hollow threaded spindle 2" BSP. Diameter range 794–812 mm. Price: 673.20
• Mechanical plug Ø 36.00" aluminium. Hollow threaded spindle 2" BSP. Diameter range 876–935 mm. Price: 792.00

Characteristics / Technical specifications

• Standard: BS8005
• Applications: low pressure, pipeline sealing
• Materials: aluminium plates, stainless steel bolts
• Central drain
• Type: mechanical plugs with hollow threaded spindle (thread sizes 1/2" BSP, 1" BSP or 2" BSP depending on variant)
• Diameter range covered: from 37 mm to 935 mm (available variants)
• Indicative price range: 9.46 - 792.00
