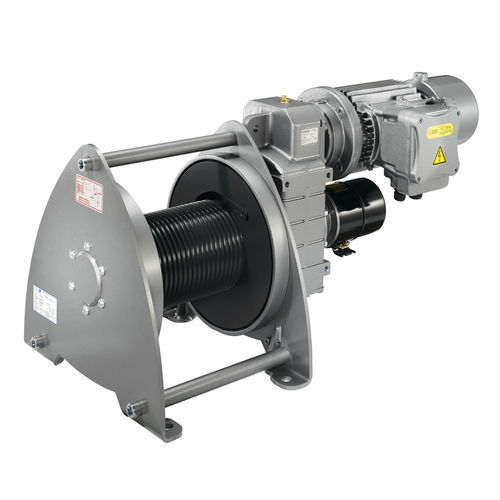

Electric winch BETA-EX

wire ropelifting400 V

The electric wire rope winch models BETA EX have been constructed for special uses. They are operationally safe where there is a danger of igniting explosive atmospheres (mixtures of air, gases, vapors or dust/air mixtures). Since the electrical wire rope winches can be used in very different surroundings, the matching winch for each application can be assembled easily with our flexible construction kit system. Equipment and processing • High-grade surface coating • Electrically released spring-operated disk brake (encapsulated) • Three-phase drives for multi-range voltage 400V-50Hz, insulation • class F, duty ratio 40 % ED • Range of temperature: -20 °C – +40 °C • Electronic overload protection as of 1000 kg lifting load (standard) • Maintenance-free, spur gear with oil bath lubrication • Variable rope direction by two rope fasteners (left and right) • Gear limit switch adjustable for limiting the wire rope travel in both • directions • Gear limit switch encapsulated • According to directive 2014/34/EU (ATEX) OPTIONS ELECTRIC CONTROL ACCORDING TO DIRECTIVE 2014/34/EU (ATEX) ELECTRIC CONTROL NON ATEX-COMPLIANT (MOUNTED OUTSIDE ATEX AREA) SPECIAL VOLTAGES SPECIAL WIRE ROPE DRUMS ROPE PRESSURE ROLLER SPECIAL WIRE ROPES WITH COPPER-PLATED LIFTING HOOKS SHEAVES, WIRE ROPE PULLEY BLOCKS (ATEX-COMPLIANT ACCORDING TO DIRECTIVE 2014/34/EU)
