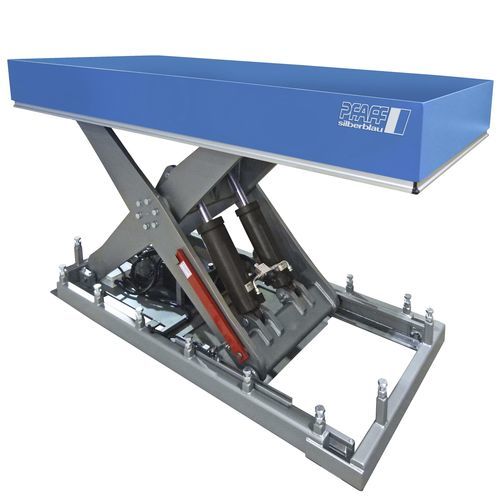

Scissor lift table HTPA serieshydraulicstationary
Add to favorites
Compare this product
Characteristics
- Technology
- scissor
- Operation
- hydraulic
- Type
- stationary
- Capacity
Max.: 6,000 kg
(13,227.7 lb)Min.: 1,000 kg
(2,204.6 lb)- Lifting height
Max.: 2,000 mm
(79 in)Min.: 800 mm
(31 in)- Tray length
Max.: 3,500 mm
(137.8 in)Min.: 1,500 mm
(59.06 in)- Tray width
1,000 mm, 1,200 mm, 1,250 mm, 1,500 mm, 2,000 mm
(39.37 in, 47.24 in, 49.21 in, 59.06 in, 78.74 in)- Lift time
20 s, 25 s, 30 s, 40 s, 45 s
- Weight
Max.: 1,780 kg
(3,924.23 lb)Min.: 338 kg
(745.16 lb)
Description
Lifting table as PLC-controlled means of production
Individual adjustment to production processes
Suitable for customer-specific attachments
Special features
• Individual customer solutions
• Smooth steel sheet platform with maintenance hatch
• Higher cycle times possible
• With upper, adjustable limit switch
• Comprehensive accessories range
• Use indoors - hall operation
• Use outdoors - optional adjustment
• All lifting tables correspond to the DIN EN 1570-1, or EC – machinery directive 2006/42/EC
• Operating voltage 400 V – 50 Hz
• Ambient temperature indoor area 0° C to +40 °C
• Maintenance supports, surrounding contact strip, line break protection, lowering brake valve
