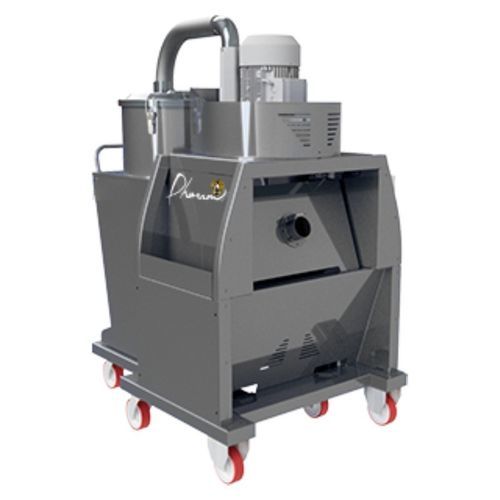

Industrial vacuum cleaner B400T55

drywetliquids

Overview
The industrial vacuum hopper B400T55 is designed for collecting large volumes of materials such as oils and metal chips. It features a compact structure, optimized ergonomics and forklift pockets to facilitate unloading.

Key points

• Three-phase suction hopper.
• Forklift pockets ensuring mobility and simplifying transport and emptying.
• Ideal for collecting large quantities of materials (high tank capacity).

Operation and filtration
The suction unit is based on a side-channel blower with a direct motor-to-impeller connection (no transmission system). Quiet, maintenance-free solution suitable for continuous operation. Equipped with a polyester pocket filter class L with a large filtration area and a manual cleaning/declogging system. Integrated sieve grate to facilitate solid/liquid separation.

Construction and handling
Manufactured in epoxy-painted steel for high durability. Maneuverability optimized with a rear push handle and industrial wheels. Large-capacity tank with a 90° tilting emptying system for ergonomic and rapid discharge of collected materials.

Specifications / technical data

• Model: B400T55
• Tank capacity: 400 L
• Motor / Power: 5.5 kW (5500 W)
• Voltage: 400 V (three-phase)
• Maximum vacuum: 3600 mmH₂O
• Maximum air flow: 530 m³/h
• Filtration area: 30,000 cm²
• Primary filter: Class L (polyester pocket filter)
• Cleaning system: Manual
• Type of suction unit: Side-channel blower (direct motor-impeller connection)
• Emptying system: 90° tilting
• Materials: Epoxy-painted steel
• Maneuverability: Push handle, industrial wheels, forklift pockets
• Weight indicated (product metadata): 530 kg
