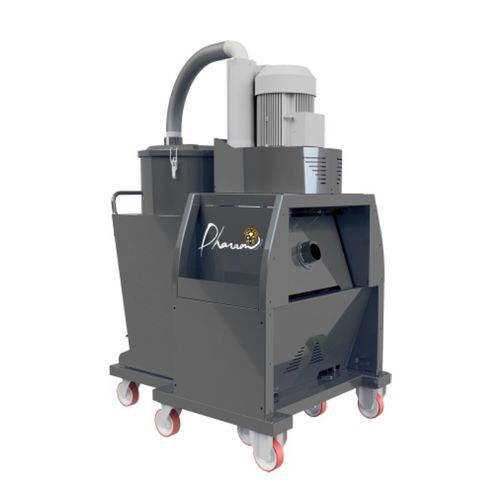

Storage hopper B400T HD

unloadingreceptionreceiving

Overview
Three-phase vacuum hopper designed to collect large volumes of materials, oils and metal chips in industrial environments.

Key features

• Three-phase vacuum hopper
• Forklift pockets for transport and ergonomic unloading
• Designed for high-volume collection and continuous industrial use

Details
Compact, heavy-duty structure that facilitates handling and transport. Fitted with a high-performance motor providing a maximum depression of 4400 mmH₂O and an air flow up to 1100 m³/h, suitable for prolonged operation.

The side-channel blower, with no mechanical transmission, ensures quiet, maintenance-free operation adapted to continuous processes.

Filtration: polyester pocket filter class L offering a large filtering surface to optimize capture of fine particles. Manual cleaning (de-clogging) system to maintain suction power. Integrated strainer separates solids and liquids.

Collection and emptying: 400 L tank for high-volume collection; 90° tilting discharge system for ergonomic emptying of collected materials.

Construction and handling: epoxy-painted steel construction for durability and resistance. Push handle and industrial wheels for easy manoeuvring on different floor types. Integrated forklift pockets to facilitate transport and dumping.

Technical specifications

• Model: B400T HD
• Max depression (mmH₂O): 4400
• Max flow (m³/h): 1100
• Capacity: 400 L
• Filtering surface: 30000 cm²
• Voltage: 400 V
• Power (W): 12500
• Primary filter: Class L (polyester pocket filter)
• Cleaning system: Manual
• Blower: Side-channel (no mechanical transmission)
• Tank: 90° tilting discharge
• Construction: Epoxy-painted steel
• Mobility: Forklift pockets, push handle, industrial wheels
