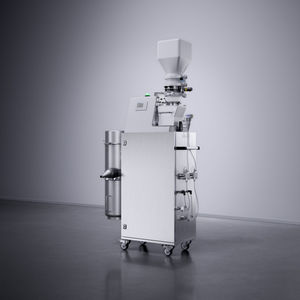

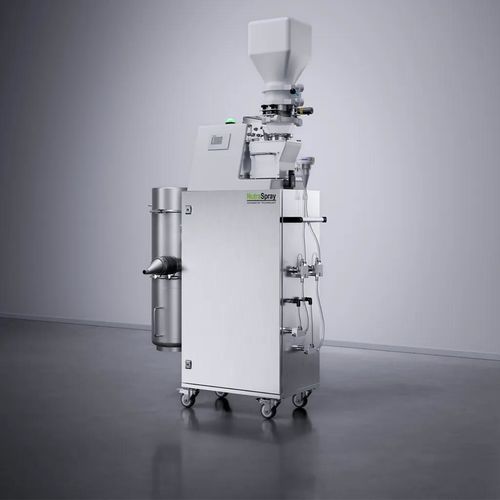

Spray lubrication system NutraSpray

continuousfor presseselectric

Description
The NutraSpray is a punch face and die wall external lubrication system for tablet presses that continuously sprays a dry lubricant onto tooling to deliver a measurable, consistent amount of lubricant to the tablet outer surface. It is designed for integration into tablet production lines and for controlled, cGMP-compliant operation.

Key benefits

• Reduces capping, sticking and other tablet defects
• Improves tablet dissolution and hardness control
• Supports continuous production with integrated pressure monitoring
• Adaptable to any tablet press configuration with customizable nozzles
• Accurate and consistent spray rate per tablet (measurable)
• cGMP design; easy to handle and clean

Physical properties
Packaging: Wooden Box
Net weight: 180 kg
Floor dimensions: 400 mm x 870 mm

Capacity
Maximum product size: Ø 28 mm

Utilities
Conveying adjustment: Dosing screw rotation speed
Compressed air: 450 - 600 l/min (min. 6 bar) — connection KS4
Power supply: 100–240 VAC ±10%
Frequency: 50/60 Hz

Environment
Noise level: <80 dB(A)
Operating temperature: 15–25 °C
Maximum relative humidity: 30%
Containment level: Open design

Material
Non-metallic contact parts: POM C, PU, Silicone
Metal contact parts: Stainless Steel 316L
Contact parts finishing: Ra ≤ 0,8 µm
Frame parts: Stainless Steel 304
Frame finishing: Brushed 320
Frame mounted on wheels: Yes

Application
Product type: Tablet
Function: Lubrication
Application area: Manufacturing
Product range: NutraRange

Lubrication
Dispensing system: For closed container refill
Spraying range: 1.5 - 15 g/min

Technical specifications

• Model / Name: NutraSpray
• Product range: NutraRange
• Product type: Tablet
• Function: Lubrication
• Maximum product diameter: Ø 28 mm
• Spraying range: 1.5 - 15 g/min
• Dispensing system: For closed container refill
• Compressed air: 450 - 600 l/min, min. 6 bar (connection KS4)
• Power supply: 100–240 VAC ±10 %, 50/60 Hz
• Noise level: <80 dB(A)
• Operating temperature: 15–25 °C
• Maximum relative humidity: 30%
• Materials (non-metallic contact): POM C, PU, Silicone
• Materials (metal contact): Stainless Steel 316L
• Contact parts finishing: Ra ≤ 0,8 µm
• Frame: Stainless Steel 304, Brushed 320, mounted on wheels
• Net weight: 180 kg
• Floor dimensions: 400 mm x 870 mm
• IQ-OQ protocol: Available
• Material certificates: Available
• Packaging: Wooden Box
