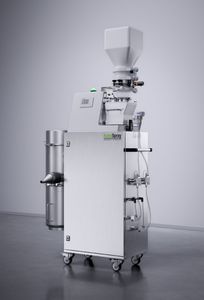

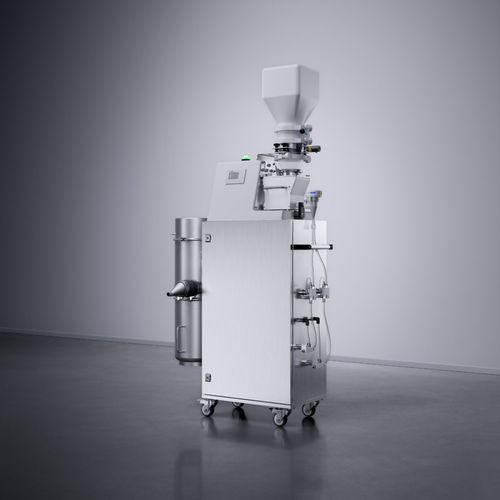

Spray lubrication system eSpray

electricautomatic

Product overview
The eSpray is an ergonomic punch face and die wall lubrication system that continuously sprays dry lubricant onto tablet press tooling, delivering a consistent and verifiable amount of lubricant onto the product's outer surface. It addresses issues such as capping, sticking, excessive ejection force and chemical incompatibility, and supports high-quality tablet production.

Key benefits

• Reduces capping, sticking, and tablet defects
• Improves tablet dissolution and hardness
• Ensures continuous production with pressure monitoring
• Designed to fit any tablet press configuration with customizable spray nozzles
• Accurate and consistent spray rate per tablet
• Measurable lubricant quantity
• cGMP design, easy to handle and wash

Features that set us apart

• Solve compression challenges: compact system effective for capping, sticking, high ejection force and chemical incompatibility; improves dissolution and supports sensitive formulations
• Validated micro-dosing: sprayed lubricant quantity is precisely controlled and measurable and remains below ingredient-threshold levels for regulatory compliance
• Cleaner production: sprays only required amount of lubricant and vacuums excess at the nozzle, reducing or eliminating the need for dry lubricant in the powder blend

Technical specifications

• Product name / model: eSpray
• Product type: Tablet
• Function: Lubrication
• Maximum Product Size: Ø 28 mm
• Conveying Adjustment: Dosing Screw Rotation Speed
• Requested Compressed Air: 450–600 L/min - Min. 6 bar
• Compressed Air connection: KS4
• Dispensing System: For closed container refill
• Spraying range: 1.5 - 15 g/min
• Noise Level: <80 dB (A)
• Power Supply: 100 to 240 VAC ± 10 %
• Frequency: 50 Hz / 60 Hz
• Non-Metallic Contact Parts: POM C, PU, Silicone
• Metal Contact Parts: Stainless Steel 316L
• Contact Parts Finishing: Ra ≤ 0.8 µm
• Frame Parts: Stainless Steel 304
• Frame Finishing: Brushed 320
• Frame mounted on wheels: Yes
• IQ-OQ Protocol: Available
• Material Certificates: Available
• Packaging: Wooden Box
• Net weight: 180 kg
• Floor Dimensions: 400 mm x 870 mm
• Containment Level: Open design
• Application Area: Manufacturing
• Product Range: eRange
• Validated features: Accurate and consistent spray rate per tablet; measurable lubricant quantity; designed for cGMP environments
