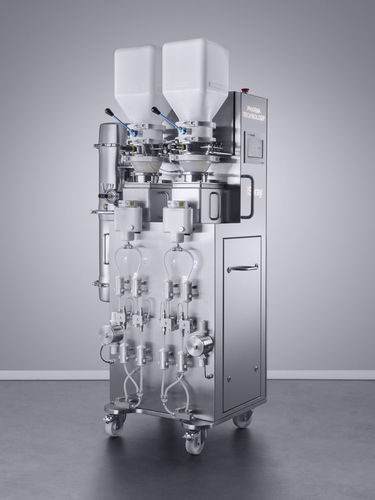

Spray lubrication system iSpray

continuousautomatedcompact

Description
iSpray is an external lubrication system for tablet presses that continuously sprays a controlled amount of dry lubricant onto the upper punch face, die wall and lower punch face. The system delivers a verifiable spray per tablet and immediately vacuums excess lubricant at the nozzle into a removable collection bin for clean operation and simplified maintenance.

Key benefits

• Reduces capping, sticking and other tablet defects
• Improves tablet dissolution profile and hardness consistency
• Supports uninterrupted production with pressure monitoring and automatic backup line
• Adaptable to most rotary tablet press configurations with customizable spray nozzles
• Accurate and consistent spray rate per tablet with measurable quantity
• Designed to cGMP standards for easy handling and cleaning
• Centralized touchscreen HMI with 21 CFR Part 11 compliant audit trail
• Containment capability up to OEB4 for single‑ and double‑sided presses

How it works
iSpray applies a precise, validated dose of dry lubricant directly to the tool surfaces (upper punch face, die wall, lower punch face). A vacuum at the nozzle captures excess lubricant immediately, reducing waste and contamination risk. Collected surplus is stored in a removable bin for quick emptying without interrupting production.

Features

• Advanced control: touchscreen HMI, recipe storage and FDA-compliant audit trail to enable process validation and traceability
• Performance improvement: reduces die wall and lower punch friction, eases ejection and take-off, prevents logo picking and sticking, extends tooling life
• Formulation support: enables reduced or eliminated bulk dry lubricant in sensitive formulations and improves tablet solubility; sprayed amount is precisely controlled and validated to meet USP requirements
• Reliable delivery: compact dual‑nozzle design compatible with most rotary presses; pressure sensor and automatic backup line activate on blockage to prevent production stoppage

Specifications (summary)
Physical properties:
Packaging: Wooden Box
Net weight: 220 kg
Floor dimensions: 620 mm x 925 mm

Capacity:
Maximum product size: Ø 28 mm
Spraying range: 1.5 - 15 g/min

Utilities:
Conveying adjustment: dosing screw rotation speed
Requested compressed air: 450 - 600 l/min - Min. 6 bar
Compressed air connection: KS4
Power supply: 100 to 240 VAC ± 10 %
Frequency: 50 Hz / 60 Hz

Environment:
Noise level: <80 dB (A)
Operating temperature: 15 - 25 °C
Maximum relative humidity: 30%
Containment level: Dust tight (up to OEB4)

Material:
Non-metallic contact parts: POM C, PU, Silicone
Metal contact parts: Stainless Steel 316L
Contact parts finishing: Ra ≤ 0,8 µm
Frame parts: Stainless Steel 304
Frame finishing: Brushed 320
Frame mounted on wheels: Yes
IQ-OQ protocol: Available
Material certificates: Available
