Convection-cooled servo motor U3 series
brushlessAC480 V

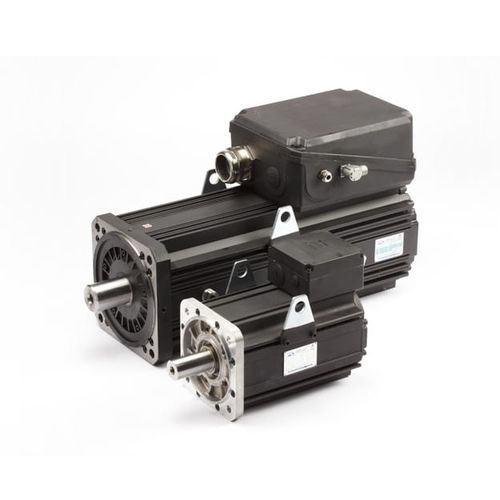

Convection-cooled servo motor - U3 series - Phase Motion Control - brushless / AC / 480 V
Convection-cooled servo motor - U3 series - Phase Motion Control - brushless / AC / 480 V
Convection-cooled servo motor - U3 series - Phase Motion Control - brushless / AC / 480 V - image - 2
Add to favorites
Compare this product
Go to the Phase Motion Control website for more information

Characteristics

Type
brushless, AC
Voltage
480 V, 380 V
Configuration
permanent magnet
Number of poles
8-pole, 12-pole
Cooling mechanism
convection-cooled
Applications
industrial
Other characteristics
high-torque, low-inertia
Intensity

Min.: 1.26 A

Max.: 74 A

Torque

Min.: 1.57 Nm
(1.157973 ft.lb)

Max.: 300 Nm
(221.268645 ft.lb)

Rotational speed

1,000 rpm, 2,000 rpm, 3,000 rpm, 4,000 rpm, 5,000 rpm
(6,283.1853 rad.min-1, 12,566.3706 rad.min-1, 18,849.5559 rad.min-1, 25,132.7412 rad.min-1, 31,415.9265 rad.min-1)

Description

High dynamic natural cooled servomotors S1 torque from 1,57 Nm up to 290 Nm The ULTRACT 3 series of high performance servo motors, produced in the new Phase Motion Control plant specialized in high performance servo motors, is based on the last generation of rare earth magnets and embodies the patented Phase surface magnet assembly technology, which endows the motors with the highest torque density.
