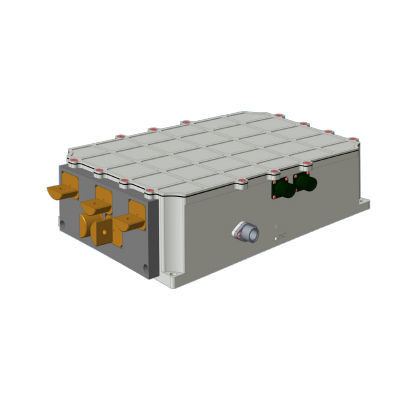

DC servo drive Axs-500

ACsynchronousbrushless

AXS 500 High-Performance Servo Drive with High Power Density Compact, liquid-cooled inverter for advanced motion and energy conversion systems. The AXS 500 is a high-performance servo drive specifically designed for demanding mobile and industrial applications where space, weight, and environmental robustness are critical. Thanks to the latest Silicon Carbide (SiC) technology, the AXS 500 offers exceptional switching performance, enabling compact and lightweight power conversion while reducing thermal load. It guarantees optimal performance even at high frequencies. The integrated direct liquid cooling system makes it ideal for propulsion systems, electric traction, and hybrid aviation applications. Key Features: Wide DC bus voltage range: 50–800 VDC Support for encoderless operation of PMSM motors Fully programmable PLC DC supply: 50–800 VDC PWM frequency: adjustable from 2 to 64 kHz Continuous AC current at 800 VDC, Tw=60°C, 16kHz: 400 Arms Multi-drive synchronization for coordinated motion systems The AXS 500 combines rugged hardware (IP65-rated) with a broad range of interfaces, including RS422, CAN/CANopen, EtherCAT, and the proprietary EtherPMC bus, ensuring seamless integration into both standard and custom architectures. Typical Applications: Electric propulsion systems (boats, submarines, pumps, actuators) Ground vehicles (trucks, buses, construction machinery) Electric replacement of hydraulic actuators Electric and hybrid aviation AC/DC, DC/AC, and DC/DC power conversion systems
