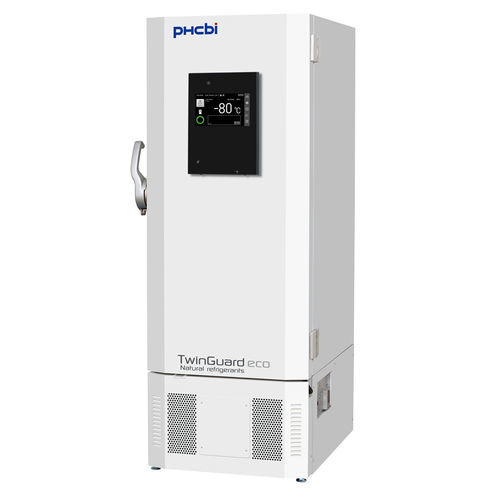

Vertical freezer MDF-DU303VXH-PE

laboratorydynamic220 V

Overview
The TwinGuard ECO MDF-DU303VXH-PE is a next-generation dual-cooling ultra-low temperature freezer designed for secure storage of high-value biological samples. It provides stable ultra-low temperature performance down to -86°C with redundant cooling to protect sample integrity.

Key features

• Ultra-low temperature operation: -86°C
• Dual independent cooling systems for redundancy and continuity
• Natural-hydrocarbon (HC) refrigerants and inverter compressors for improved energy efficiency
• 10.1" door-mounted LCD touchscreen and USB data export
• Filterless design to reduce routine maintenance

Control and monitoring
Door-mounted 10.1-inch high-resolution LCD touchscreen provides local control and graphical temperature history. Data logging and export via USB; internal temperature records available for review.

Security and access

• PIN code
• Individual mechanical key
• Face recognition (optional)
• NFC proximity card (optional)

Design and maintenance
Compact footprint with chamfered edges for multi-unit installations, rear/bottom access ports and caster/leveling feet for positioning. Filterless construction simplifies maintenance tasks.

Range

• Available models in the TwinGuard ECO series: MDF-DU303VXH-PE, MDF-DU503VXH-PE, MDF-DU703VXH-PE

Technical specifications

• Model: MDF-DU303VXH-PE
• Commercial name: TwinGuard ECO MDF-DU303VXH-PE
• Brand: PHCbi
• External dimensions (W x D x H): 670 x 882 x 1838 mm
• Internal dimensions (W x D x H): 490 x 600 x 1230 mm
• Volume: 360 L
• Net weight: 225 kg
• Capacity (2" boxes, aluminum racks): 288
• Rated temperature: -86°C
• Temperature setting range: -40°C to -90°C
• Temperature control range: -40°C to -86°C
• Controller: Microcomputer control system
• Display: LCD digital (10.1" door-mounted)
• Temperature sensor: Pt1000
• Compressors: 2 x 550 W
• Refrigerant: Mixed HC refrigerant
• Insulation material: PUF/VIP Plus
• Insulation thickness: 80 mm
• Exterior material: Painted steel
• Interior material: Painted steel
• Exterior doors: 1
• Exterior door lock: Yes
• Interior doors: 2 (polystyrene)
• Access ports: 3 (rear/bottom)
• Access port diameter: 17 mm
• Casters: 4 (2 leveling feet)
• Data logging / USB: Yes
• Alarms: Power failure, High temperature, Low temperature
• Power supply: 220/230/240 V
• Frequency: 50 Hz
• Noise level: 52 dB[A]
