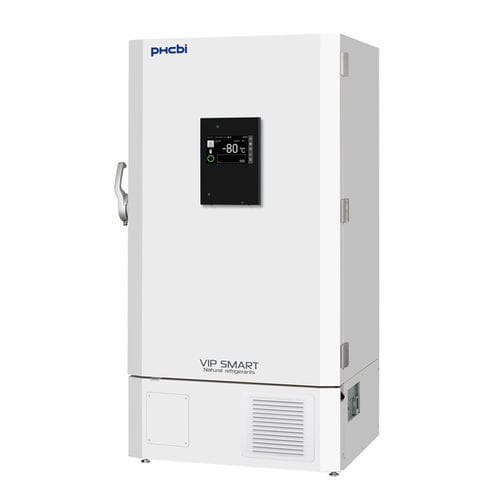

Upright freezer MDF-DU703VHE-PE

laboratory220 V240 V

Overview
The MDF-DU703VHE-PE VIP SMART Ultra-Low Temperature Freezer combines energy-efficient sample storage with advanced access control and reliable temperature performance. Effective capacity: 729 liter. Cooling performance range: -86 to -40 °C. Natural refrigerants and inverter compressor technology improve efficiency while maintaining cooling performance, ambient tolerance and recovery following door openings.

Energy-saving performance
Designed to reduce operating costs associated with ultra-low temperature storage and deliver low energy consumption while maintaining reliable performance.

• 5.4 kWh/day at -80°C
• 4.4 kWh/day at -70°C

Smart Performance
Inverter-driven compressors with SMART control provide excellent temperature uniformity and intelligent compressor management to maintain tight temperature stability while improving efficiency.

Security control and monitoring
Manage and monitor access to stored samples, track who accessed the freezer and when, and measure door-open duration. Multiple access-control methods are available:

• Facial recognition (optional)
• Keypad
• Proximity card / NFC (optional)
• Key

Password protection, optional facial recognition and optional NFC authentication can be combined with an electric lock for enhanced access control.

Intuitive touchscreen monitoring
Eye-level, door-mounted 10.1-inch high-resolution LCD touchscreen provides convenient access to controls and performance information. Internal temperature logs can be displayed graphically and exported via USB.

Natural refrigerants
Uses naturally occurring hydrocarbon (HC) refrigerants combined with inverter technology to lower environmental impact, improve efficiency and maintain recovery performance after door openings.

High-capacity sample storage
With an internal volume of 729 litres the freezer can store up to 576 2-inch boxes in its original configuration. Features include:

• 729-litre internal capacity
• Capacity for up to 576 2-inch boxes
• Three shelves
• Maximum load of 50 kg per shelf

Designed for reliable sample protection
Integrated alarm functionality and monitoring features support reliable day-to-day sample storage.

• Power failure alarm
• High-temperature alarm
• Low-temperature alarm
• Door-open monitoring
• Filter monitoring

Caractéristiques / spécifications techniques

• External Dimensions (W x D x H): 1030 x 882 x 1988 mm
• Internal Dimensions (W x D x H): 870 x 600 x 1400 mm
• Volume: 729 liter
• Net Weight: 276 kg
• Capacity (Stainless Steel Racks 2” Boxe): 576
• Cooling Performance: -86 to -40 °C
• Temperature Setting Range: -90 to -40 °C
• Temperature Control Range: -86 to -40 °C
• Controller: Microcomputer control system
• Display: LCD Digital display
• Temperature Sensor: Platinum resistance (Pt 1,000 Ω)
• Refrigeration System: Cascade
• Compressors: High stage side; Hermetic type, Output: 750 W; Low stage side; Hermetic type, Output: 750 W
• Refrigerant: HC
• Insulation Material: Rigid polyurethane foamed-in place + Vacuum insulation panel
• Exterior Material: Painted Steel
• Interior Material: Painted Steel
• Outer Doors/Lid: 1
• Outer Door Lock: Yes
• Inner Doors/Lid: 2
• Shelves: 3
• Max. Load - Per Shelf: 50 kg
• Vacuum Release Port: 1 (automatic)
• Access Port: 3
• Access Port Position: back x1, bottom x2
• Access Port Diameter: 17 mm
• Casters: 4 (2 leveling feet)
• Power Failure: V-B-M-R
• High Temperature: V-B-M-R
• Low Temperature: V-B-M-R
• Filter: V-M
• Door Open: V-B-M
• Power Supply: 220/230/240, 220/230 V
• Frequency: 50 / 60 Hz
• Noise Level: 52 dB (A)
