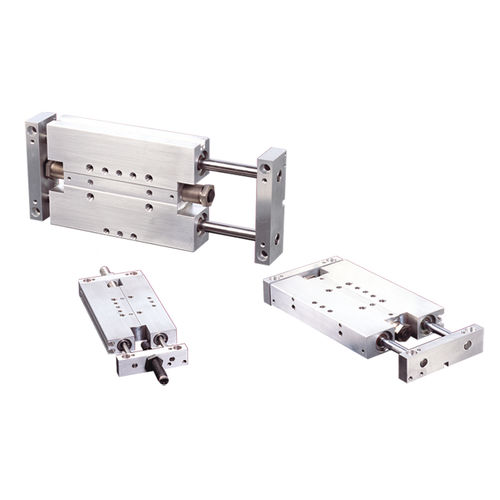

Ball bearing linear slide SM series
pneumatic

ball bearing linear slide
ball bearing linear slide
Add to favorites
Compare this product

Go to the PHD, Inc. website for more information

Characteristics

Type
ball bearing
Other characteristics
pneumatic
Load

Max.: 31.1 kg
(68.6 lb)

Min.: 0 kg
(0 lb)

Stroke

Max.: 152 mm
(6 in)

Min.: 25 mm
(1 in)

Description

Overview Series SM Pneumatic Gantry Slides feature smooth linear motion capable of high speed operation at twice the thrust with dual bore. Rod wipers protect against contamination, and optional shock pads absorb impact for high speed operation. Series SM Slides are designed for high thrust applications and compatibility in mounting. Advantages Five bore sizes and three travel lengths available, provides smooth linear motion.
