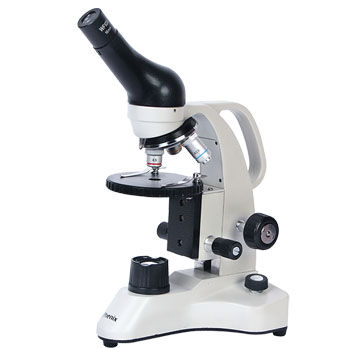

Optical microscope PH20 Seriesinspectionmonocularachromatic
Add to favorites
Compare this product
Characteristics
- Type
- optical
- Technical applications
- inspection
- Microscope head
- monocular
- Quality of the objectives
- achromatic
- Configuration
- tabletop
- Other characteristics
- observation
- Magnification
Min.: 40 unit
Max.: 1,000 unit
Description
The PH20 series biological microscopes, the biological microscopes recommended by the new curriculum standards, are very suitable for observing biological slices and specimens in elementary and middle schools. It can also be used for routine inspection and analysis of biology and pathology in health inspection departments.
Product Features:
● Monocular observation tube
45° inclined, 360° rotatable
● Wild-field eyepiece
WF16X/11MM, WF10X/16MM
● Achromatic objective
4X, 10X, 40X(Spring)
● Mobile round stage, slice clamp
Diameter: 90, circular movement range: 6mm (with white frosted glass)
● Coarse and fine focusing on different axes
Coarse adjustment stroke: 10mm, fine adjustment accuracy: 1.8mm
● Lighting system
Plano-concave mirror, 40mm
High brightness LED, cold light source, rechargeable, adjustable brightness
● Handle
Built-in handle, easy to take and move
● Power supply
External switching power supply (adapter), AC95V-250V
