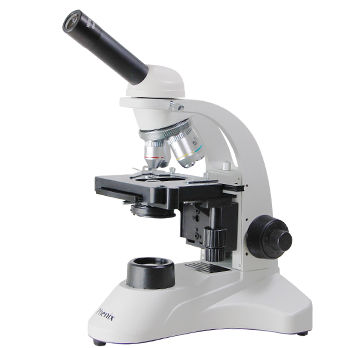

Optical microscope PH50 Series

laboratoryfor teachingmedical

PH50 series biological microscope, excellent optical system design, classic shape, light and beautiful, easy to observe and use, long-term observation is not easy to fatigue. A variety of configurations are available, which can be connected to cameras, electronic eyepieces, etc., which is a multifunctional microscope. PH50 series biological microscope can be used for teaching research, clinical experiment and scientific research analysis of biology, pathology, bacteriology, etc. in many units such as middle and higher education institutions, medical and health, laboratories and scientific research institutes. Product features: ● Wide-field eyepiece Wide field WF10X/18mm Wide field WF16X/15mm ● Achromatic objective 4X, 10X, 40X (spring), 100X (spring oil) ● Adjustable binocular tube Hinged binocular, 30° tilt, interpupillary distance: 48-75mm ● Double-layer mechanical stage Size: 115X125mm, 140x132mm (optional) Moving range: 76mmX52mm ● Coaxial coarse and fine focusing system Coarse adjustment stroke: 22mm, fine adjustment accuracy: 0.002mm ● Lighting system Upper light source: 1W LED cold light source with lens (non-standard, optional) Bottom light source: LED 3W, adjustable brightness ● Power supply External switching power supply (adapter), AC100V-240V, DC5V/2A
