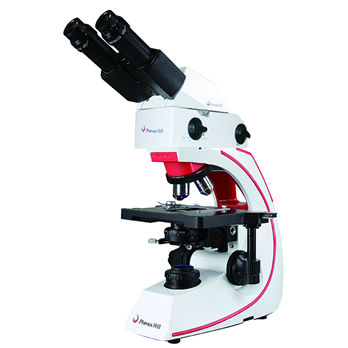

Optical microscope BMC500 series

industrialtrinocularachromatic

Fluorescent Device Wave segment: B excitation light color filter components Band parameters: stimulate EX460-490, color seperation DM505, BA515 end Upper light : LED 3W, brightness adjustable Lighting switching: up and down lighting can be switched freely Optical parts Viewing head: Infinity compensation trinocular head, 30°inclined, 360° rotatable, interpupillary distance 48-75mm Eyepiece: high eyepoint, large field of view, no distortion, diopter adjustable , WF10X/20mm, WF16X/16mm Objective: ICCF Infinity Plan High Contrast Achromatic, HC PLAN 4X/0.10, 10X/0.25, 40X/0.65 (Spring), 100X/1.25 (Spring,Oil) Nosepiece: Quadruble four holes, inward , steel ball positioning Stage: Double Layer Mechanical Moving Stage, can hold two slice, size 188×145mm, Moving range 76×54mm Focusing system: Coaxial Coarse and Fine focusing knob, coarse adjustment 20mm, fine adjustment 0.001mm, with hand wheel elastic adjustment, Random limit locking mechanism Condenser: Full Koler Abbe condenser, N.A.=1.25, iris diaphragm, concentrator center adjustable Koler Lighting: Full Koler illumination, adjustable field diaphragm Bottom ligh: LED 3W , no flickers, brightness adjustable Power : external switch power supply, input AC 90-240V, output DC 6.5V
