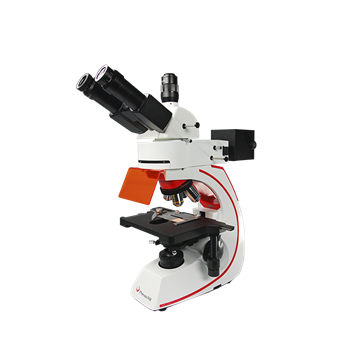

Optical microscope BMC533-FLED-UVBG

for researchmedicaltrinocular

Optical system: Infinity Optical System Viewing head: Infinity compensation trinocular head, 30°inclined, 360° rotatable, interpupillary distance 48-75mm Eyepiece: high eyepoint, large field of view, no distortion, diopter adjustable , WF10X/20mm, WF16X/16mm Objective: ICCF Infinity Plan High Contrast Achromatic, HC PLAN 4X/0.10, 10X/0.25, 40X/0.65 (Spring), 100X/1.25 (Spring,Oil) Nosepiece: Quadruble four holes, inward , steel ball positioning Stage: Double Layer Mechanical Moving Stage, can hold two slice, size 188×145mm, Moving range 76×54mm Focusing system: Coaxial Coarse and Fine focusing knob, coarse adjustment 20mm, fine adjustment 0.001mm, with hand wheel elastic adjustment, Random limit locking mechanism Condenser: Abbe condenser, N.A.=1.25, iris diaphragm, concentrator center adjustable Transmitted light source: LED 3W, adjustable brightness Base Power : external switch power supply, DC 6.5V Epi-fluorescent lighting system: Light source: LED 3W, adjustable brightness Fluorescent components: Blue (B) excitation wavelength: 430-485 nm, color separation wavelength: 500 nm, emission wavelength: 515 nm Green (G) excitation wavelength: 460-550nm, color separation wavelength: 580nm, emission wavelength: 590nm Ultraviolet (UV) excitation wavelength: 350-390nm, color separation wavelength: 415nm, emission wavelength: 425nm Violet (V) excitation wavelength: 395-415nm, color separation wavelength: 430nm, emission wavelength: 455nm Power: External regulated power adapter, DC 6.5V/2A Eye protection screen: UV protection baffle
