Overview

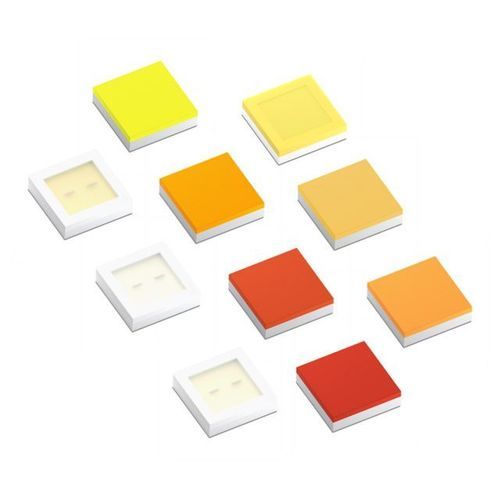

The LUXEON HL1Z Color Line & Fusion family are CSP (Chip Scale Package) LED emitters in a 1414 (1.4 mm × 1.4 mm) package. Designed for compact single‑emitter and multicolor cluster applications, the range delivers saturated direct colors, phosphor‑converted colors and Fusion variants tuned for white‑tuning and directional small‑beam sources with correlated color temperatures between 1,800 K and 6,500 K.

Features & Benefits

• CSP 1414 package enables very compact cluster designs and close LED-to-LED spacing for effective color mixing.
• Supports high power density (up to 2 W electrical power per LED) for increased output in small form factors.
• Phosphor‑converted variants provide stable saturated colors over temperature.
• Fusion Red/Green/Blue variants are optimized for white‑tunable directional outputs and compact white‑tuning solutions.
• Complementary to LUXEON HL1Z white LEDs for combined multicolor/white solutions.

Product Performance (specified at test current 350 mA, Tj = 85°C)

• PC Red — Luminous flux typical: 20 lm (example part: L1HZ-PCR1000000000)
• PC Red Orange — Typical: 35 lm (L1HZ-RNG1000000000)
• PC Amber — Typical: 119 lm (L1HZ-PCA1000000000)
• PC Green — Typical: 195 lm (L1HZ-PCG1000000000)
• Green (direct) — Dominant 520–535 nm, typical 145 lm (L1HZ-GRN1000000000)
• Blue (direct) — Dominant 470–485 nm, typical 57 mW radiometric (L1HZ-BLU1000000000)
• Royal Blue — Dominant 450–460 nm, typical 610 mW radiometric (L1HZ-RYL1000000000)
• Fusion Red — Typical: 70 (L1HZ-FCR1100000000); Fusion Green — Typical: 152 (L1HZ-FCG1100000000); Fusion Blue — Typical: 137 (L1HZ-FCB1100000000)

Additional Product Notes

• CSP 1414 (1.4 mm × 1.4 mm) package enables minimal light emitting surface (LES) for small beam angles and compact directional spots.
• Fusion variants are specifically tuned for high directionality and white‑tuning in compact clusters.
• Typical spectral power distribution (SPD) graphs and normalized spectral data are published for Direct Colors, PC Colors and Fusion variants under specified test conditions (350 mA, Tj = 85°C).

Specifications

• Manufacturer / Brand: Lumileds
• Product family: LUXEON HL1Z Color Line & Fusion
• Package type: CSP (Chip Scale Package), 1414 (1.4 mm × 1.4 mm)
• Test conditions: 350 mA, Tj = 85°C
• Maximum electrical power per LED: up to 2 W
• Available variants: PC Red, PC Red Orange, PC Amber, PC Green, Green, Blue, Royal Blue, Fusion Red, Fusion Green, Fusion Blue
• Intended applications: individual emitters, compact multicolor clusters, white‑tunable sources (1,800 K–6,500 K), directional small‑beam spots, multicolor lighting arrays
• Part number examples: L1HZ‑… series (e.g., L1HZ-PCR1000000000 for PC Red)
