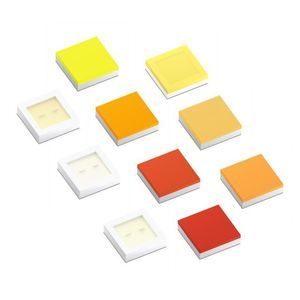

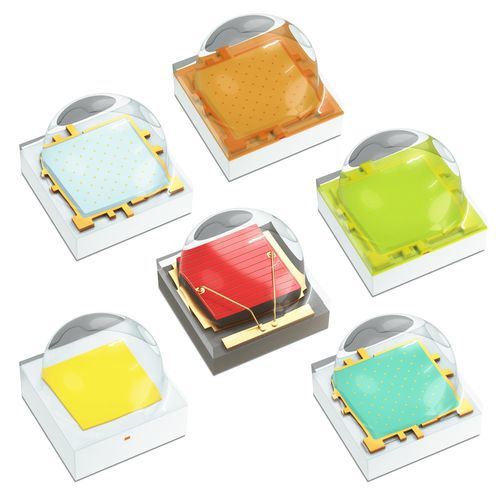

Orange LED LUXEON C ES

blueredgreen

Overview
The LUXEON C ES Color Line is engineered for large LED arrays used under a single optic. Its larger die in a compact package reduces total array area while enabling optimized LED placement and high light output. The three-stripe pad supports complex electronic routing and enhanced thermal connections. Typical applications include entertainment, architectural and exterior variable lighting (EVL) where high output from clustered arrays is required.

Features & Benefits

• Optimized for multi-color array mixing with minimal LED-to-LED spacing for close-packed placement
• Three-stripe footprint enables flexible routing and shortened electrodes to keep LEDs maximally close-packed
• Large die in a small package delivering high flux, low forward voltage (Vf), and reduced Pthermal
• High drive current capability to maximize output and minimize LED count
• Large thermal pad to support high drive currents and tight LED clusters
• Proven, robust package for reliable operation

Product Performance — Colors (specified test current 1000 mA, Tj = 85°C)
Deep Red — Dominant/Peak 655 — 675 nm — 935 lm (Min) — 1100 lm (Typical) — L1C2-DRD1000000000
Red — Dominant/Peak 624 — 634 nm — 106 lm (Min) — 125 lm (Typical) — L1C2-RED1000000000
PC Amber — — — 264 lm (Min) — 310 lm (Typical) — L1C2-PCA1000000000
Mint — — — 391 lm (Min) — 460 lm (Typical) — L1C2-MNT1000000000
Lime — — — 425 lm (Min) — 500 lm (Typical) — L1C2-LME1000000000
Green — Dominant/Peak 520 — 540 nm — 298 lm (Min) — 350 lm (Typical) — L1C2-GRN1000000000
Cyan — Dominant/Peak 490 — 510 nm — 204 lm (Min) — 240 lm (Typical) — L1C2-CYN1000000000
Blue — Dominant/Peak 465 — 485 nm — 94 lm (Min) — 110 lm (Typical) — L1C2-BLU1000000000
Royal Blue — Dominant/Peak 440 — 460 nm — 1275 mW (Min radiometric) — 1500 mW (Typical radiometric) — L1C2-RYL1000000000

Product Performance — White (specified current 1000 mA, Tj = 85°C)
White — 5700K — 70 CRI — 325 lm (Min) — 385 lm (Typical) — 131 lm/W — L1C2-5770000000000
White — 2700K — 80 CRI — 270 lm (Min) — 320 lm (Typical) — 108 lm/W — L1C2-2780000000000
White — 3000K — 80 CRI — 285 lm (Min) — 335 lm (Typical) — 114 lm/W — L1C2-3080000000000
White — 4000K — 80 CRI — 305 lm (Min) — 360 lm (Typical) — 122 lm/W — L1C2-4080000000000
White — 5700K — 80 CRI — 305 lm (Min) — 360 lm (Typical) — 122 lm/W — L1C2-5780000000000

Typical Spectral Information
Typical normalized SPD curves are provided for direct colors and phosphor-converted colors (measured at 1000 mA, Tj = 85°C).

Applications

• Large multi-color LED arrays under single optics
• Entertainment lighting
• Architectural lighting
• Exterior variable lighting (EVL) and other high-output clustered arrays

Technical specifications

• Series: LUXEON C ES Color Line
• Test conditions: 1000 mA, junction temperature Tj = 85°C
• Package: small-package with larger die and large thermal pad; three-stripe pad footprint for complex routing
• High drive current capability to maximize output while minimizing LED count
• Close-packed LED placement enabled by small package and thermal design
• Available direct and phosphor-converted colors: Deep Red, Red, PC Amber, Mint, Lime, Green, Cyan, Blue, Royal Blue, and white CCTs (2700K, 3000K, 4000K, 5700K)
• Representative part numbers: L1C2-DRD1000000000, L1C2-RED1000000000, L1C2-PCA1000000000, L1C2-MNT1000000000, L1C2-LME1000000000, L1C2-GRN1000000000, L1C2-CYN1000000000, L1C2-BLU1000000000, L1C2-RYL1000000000, L1C2-2780000000000, L1C2-5770000000000
• Documentation available: product brief, application brief and product datasheet
