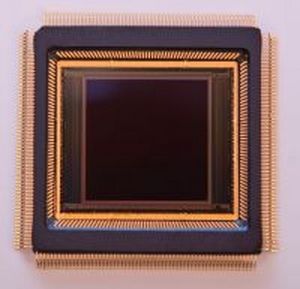

CMOS image sensor A2080-640infraredhigh-speed

CMOS image sensor
CMOS image sensor
Add to favorites
Compare this product
indicative price

Characteristics

Technology
CMOS
Spectrum
infrared
Other characteristics
high-speed

Description

New: High speed 4MP CMOS sensor with high NIR sensitivity - 2080 x 2080 pixel resolution - 8 µm x 8 µm square pixel - Monochrome - Global shutter - Over 60% fill factor without microlenses - Dynamic range up to 120 dB via LinLog® - Spectral range from under 350 nm to over 1000 nm - High near infrared (NIR) sensitivity - Up to 140 frames per second (fps) @ full resolution - Higher frame rates through vertical windowing - Flexible ROI and Multiple ROI in Y direction - Sequential, simultaneous or nondestructive read out - Integrated test pattern, temerature sensor and black level reference - No sensor cover glass - Wide temperature range: -20 to + 85 °C - Package options: 240 pin CQFP (without cover glass)
