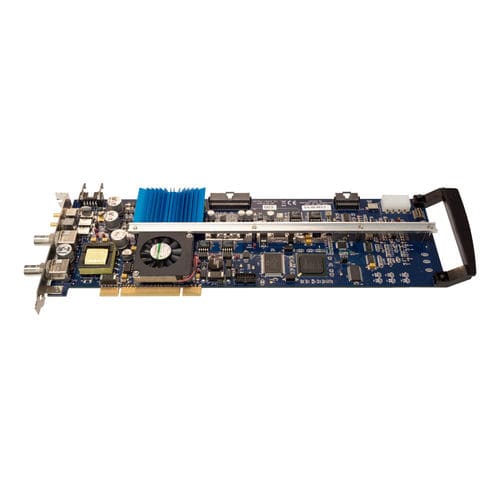

Arbitrary waveform generator ARB-1410
PCI card

arbitrary waveform generator
arbitrary waveform generator
arbitrary waveform generator
arbitrary waveform generator
Add to favorites
Compare this product


Characteristics

Type
arbitrary waveform
Other characteristics
PCI card

Description

The ARB-1410 is a highly precise (14-bit), high speed (100 MSample/sec), arbitrary waveform generator on a PCI card. Using WaveGen1410 Software, it is capable of providing an extensive variety of simple or complex acoustic emission waveforms of all shapes and amplitudes up to ±150 Volts. Its PCI form factor allows it to be installed in a wide range of standard computer chassis, as well as specialized chassis available from Physical Acoustics. The ARB-1410's flexibility makes it useful for a range of applications. In addition to acting as a high-performance electronic signal generator or synthesizer, it can synthesize waveforms for Acousto-Ultrasonics signal generation or Guided Wave Inspection. It can also serve as an AE calibrator from within an Acoustic Emission system. Plus, it can replay captured waveforms from an AE system, with the ability to import and process AE waveforms from files.

Catalogs

No catalogs are available for this product.

See all of Physical Acoustics‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
