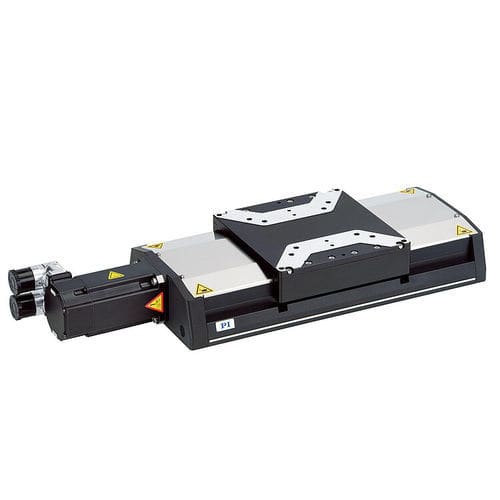

Linear stage L-417 series

motorizedball bearingprecision

Width 166 mm Precision ball screw Incremental or absolute linear encoder, various resolutions Precision recirculating ball bearing guides, load capacity to 450 N Covering strip on the side for protection against particles Powerful linear stage for use in demanding industrial applications Precision ball screws, high-performance synchronous servo motors, heavy-duty recirculating ball bearing guides, and precision rotary and linear encoders enable continuous and reliable operation under high load. The optional holding brake allows use as Z axis. The ball screw can be relubricated from the outside without disassembling to ensure high reliability and long lifetimes. It is also possible to integrate into a customer's central lubrication system. The covering strip on the side and the purge air connector prevent contamination by particles. Pioneering design The recirculating ball bearing guides of the L-417 series are designed for high load capacity and dynamics. The high resolution of the motors allows improved tracking performance, smaller tracking errors, and improved settling times. Options Holding brake (L-417.xxxxxxB) Various rotary and linear encoders, absolute and incremental Versions with linear encoder with drag chain and connection box (L-417.xxxxxxE1). On request: Folded drivetrain with belt drive. This modification reduces the overall length. On request: Calibration and certification Synchronous servo motor These motors have high positioning accuracy and high overload capacity over a large rotation speed range. High torque and low inertia ensure the high dynamics of the drives.
