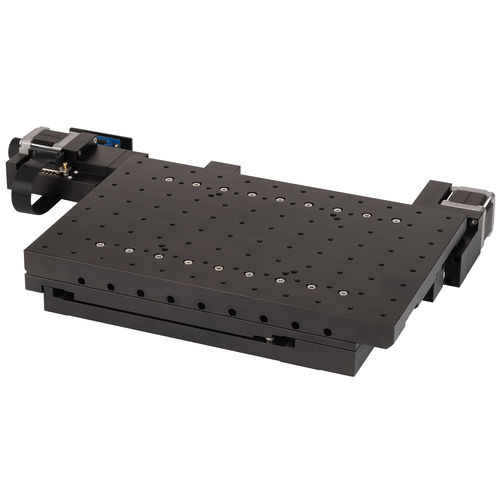

XY stage M-971

motorized2-axiscrossed roller

XY stage for the price-sensitive applications Precise stepper motors Crossed roller guides Limit and reference switches (Hall effect) XY stage for the price-sensitive OEM market The M-971 is integrated into systems for inspection, lithography, or biomedical engineering and is optimized for optical microscopy. It was specially developed to meet the requirements of price-sensitive OEM markets. Proven and cost-optimized components form its basis: The design of the guides which includes several short crossed roller guides distributes the load evenly over a large surface and ensures high stiffness and good travel accuracy. The drivetrain is based on a widely used linear stage from PI. Its reliability and long lifetime have been proven in use for years. By using stepper motors, encoders can be dispensed with and a simple stepper motor controller can be used. The XY stage is equipped with limit and reference switches to ensure fast and precise referencing and safety during operation.
