Pneumatic connector module 02478 series

multi coaxialrectangular

Product description

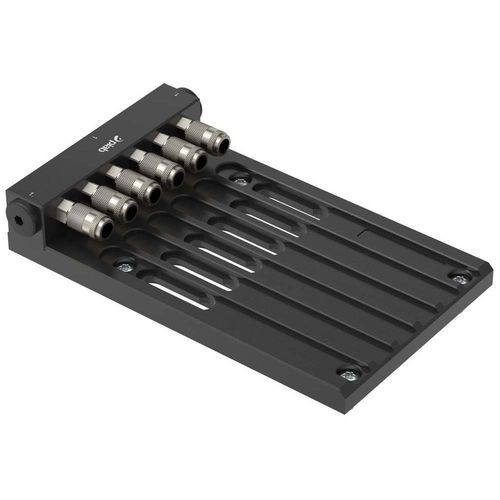

Quick connect module for simplified installation and service of individual channels of piCOMPACT®10x and piCOMPACT®10x SMART in a stacked configuration. The module integrates a common compressed feed port and an integrated shut-off that isolates a disconnected unit so the air supply can remain on while switching pumps. This page shows the 6pos variant.

Features

• Common compressed feed port reduces installation cost and shortens installation time.
• Easy removal and servicing of individual channels when stacked.
• Integrated shut-off when disconnected allows air supply to stay on during pump changeover.
• Secure mounting for stable stack installation.
• Available in 1, 2, 4 and 6 position variants.

Variants

• Quick connect module NPSF 1/8\", 1pos — Item number: 0247807
• Quick connect module NPSF 1/8\", 2pos — Item number: 0247808
• Quick connect module NPSF 1/8\", 4pos — Item number: 0247809
• Quick connect module NPSF 1/8\", 6pos — Item number: 0247810

Notes

• Product condition: new (page metadata).
• Availability: out of stock (page metadata).

Technical specifications

• Item number (this page): 0247810
• Product type: Quick connect module NPSF 1/8\"
• Positions: 6 pos (also available: 1, 2, 4)
• Compatibility: piCOMPACT®10x, piCOMPACT®10x SMART
• Function: common compressed feed port; integrated shut-off when disconnected
• Main benefits: reduced installation cost and time; simplified maintenance; secure installation
• Alternative item numbers: 0247807, 0247808, 0247809, 0247810
