Rotary transfer machine 10-15/OSE Hp LL_160
CNC10-positionwith rotary table

Rotary transfer machine - 10-15/OSE Hp LL_160 - Picchi S.r.l. - CNC / 10-position / with rotary table
Rotary transfer machine - 10-15/OSE Hp LL_160 - Picchi S.r.l. - CNC / 10-position / with rotary table

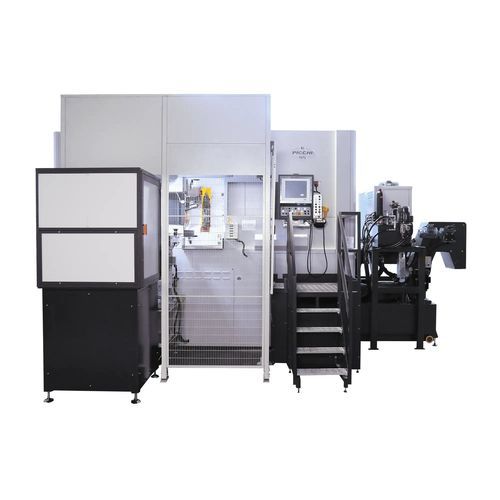

Rotary transfer machine - 10-15/OSE Hp LL_160 - Picchi S.r.l. - CNC / 10-position / with rotary table - image - 2
Add to favorites
Compare this product

Characteristics

Type
rotary
Control type
CNC
Number of positions
10-position
Other characteristics
with rotary table, machining, tapping, programmable, automated loading/unloading, horizontal-axis, drilling, high-accuracy, precision

Description

Overview
  • Transfer rotary machine designed for medium to high-volume production of hydraulic, oil-hydraulic and pneumatic fittings.
  • Equipped with a horizontal rotary table and sequential machining stations for complete multi-operation cycles.


Base
  • Monolithic, high-stiffness structure designed with FEM to optimize rigidity and thermal stability.


Rotary table
  • Horizontal rotation axis with 10 stations.
  • Rotation driven by a torque motor with direct encoder position feedback.
  • Hydraulic table locking; mechanical components are pressure-protected against chips and coolant.


Working units
  • 15 machining units with 160 mm stroke: 7 UFE160/40 drilling/reaming units, 5 UFME160/40 drilling/tapping units and 3 UFME160/Re units with electronic retraction.
  • ISO 40 spindle coupling with quick-change tool holder.
  • Optional "HP" configuration for enhanced rigidity and performance.
  • Optional "Long Life" configuration with pressurized unit housings to prevent chip/coolant ingress and minimize quill wear.
  • Axes driven by preloaded precision ball screws, motorized by brushless motors.
  • Three pressurized and lubricated electronic retraction heads with horizontal movement on inclined guides.


Additional features
  • Thermoregulation: sensors for ambient, machine-internal and coolant temperatures to stabilize thermal growth and improve accuracy.
  • Electronics: Siemens components; CNC 840D Siemens; climate-controlled electrical cabinets; integrated remote assistance.
  • Programming: ISO language or Picchi user-friendly interface in operator language.
  • Tooling & changeover: comprehensive quick-fit tooling options; full re-equipment in approximately 60 minutes; integrated automation-ready design.
  • Automation: fixed robot loading/unloading system option with vision system and electronics integrated into machine control.
  • Tele-service: remote maintenance, diagnostics and support functions available.
  • Industry 4.0 readiness: factory IT connectivity, condition monitoring, process parameter supervision and adaptive control against process drift.


Technical specifications
  • Table rotation axis: horizontal.
  • Number of stations: 10.
  • Number of machining units: 15 (stroke 160 mm).
  • Spindle coupling: ISO 40.
  • Table indexing time: 0.2 (reference value shown on technical sheet).
  • Key options: HP (High Performance), Long Life, Thermoregulation.
  • Axis drives: preloaded ball screws driven by brushless motors.
  • Control: Siemens CNC 840D.
  • Automation: anthropomorphic robot with vision system (option).


Model / Brand
  • Model: 10-15/OSE Hp LL 160
  • Brand: Picchi
