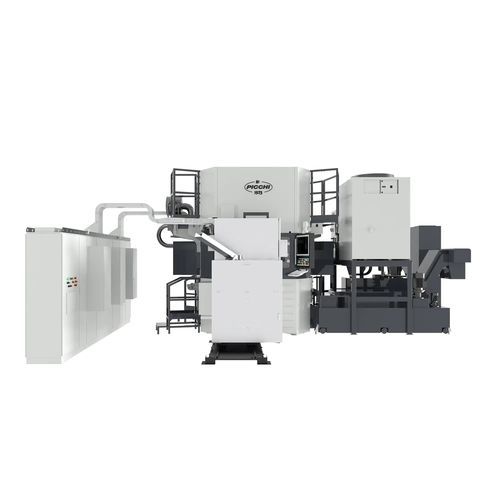

Rotary transfer machine 14-24/VSE Hp LL

CNC14-positionprecision

Overview
The 14-24/VSE Hp LL is a CNC transfer machine with integrated diamond dressing (grinding) operation, designed for the complete machining of gas valve bodies in serial production.

Product

• Type: CNC transfer machine
• Model: 14-24/VSE Hp LL
• Integrated function: diamond dressing (grinding)
• Primary application: complete machining of gas valve bodies
• Product family: Transfer machines

Applications

• Series production of gas valve bodies and similar hydraulic/pneumatic components
• Combined turning, milling and finishing operations with integrated diamond finishing for sealing and seating surfaces

Key features

• 14-station rotary table configuration for continuous transfer processing
• 24 machining units with 100 mm Z stroke
• HP option for increased stiffness and performance
• Long Life option to reduce pinole wear and protect bearings/spindle from chips and coolant
• ABS40 spindle nose and preloaded precision ball-screw drive driven by brushless motors
• Integrated dedicated manipulator for automated loading/unloading

Technical specifications

• Manufacturer: Picchi
• Model commercial: 14-24/VSE Hp LL
• Number of stations: 14
• Machining units: 24 (Z travel 100 mm)
• Spindle motor power: 3 kW (S1)
• Spindle nose: ABS40
• Optional max spindle speed: up to 16,000 rpm
• Control: Siemens 840D CNC; user interface available in local language
• Thermoregulation: environment, machine and coolant temperature probes for dimensional stability
• Connectivity: teleservice and Industry 4.0 ready for process monitoring and factory integration
