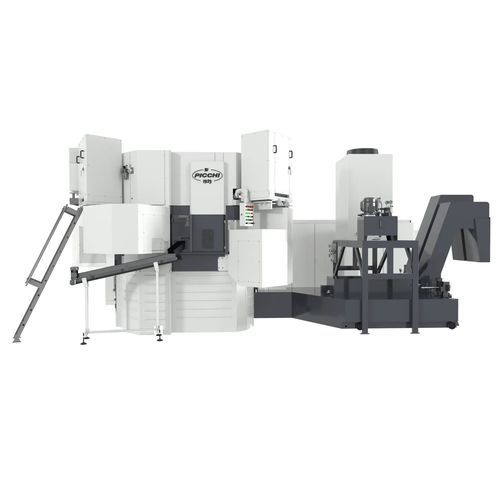

Rotary transfer machine T16-U27

CNC16-positionhigh-productivity

Product overview
The Combyax T16-U27 is a compact transfer multi-spindle machine designed for simultaneous machining across multiple work centers. It integrates 16 stations and 27 spindles running concurrently to support high-throughput production of complex parts.

Product family
Combyax

Applications
Suitable for production of multi-face components and complex geometries in sectors such as gas components, valve manufacturing, and household appliance parts. Adapted to processes requiring machining on several sides and automated transfer between operations.

Key features

• 16 indexed stations for staged processing
• 27 spindles operating simultaneously
• Compact footprint (external lower-body diameter below 2.4 m)
• Combination of 3-axis and 2-axis CNC work centers
• Self-centering jaws for double-position clamping (OP10/OP20)
• HSK63C internal spindle coupling
• Integrated anthropomorphic robot for part transfer between OP10 and OP20

Options & systems

• "HP" option for increased stiffness and precision
• "Long Life" pressurization to prevent swarf and coolant ingress into bearings and spindle
• Remote teleservice for diagnostics and maintenance
• Industry 4.0 readiness: factory connectivity, condition monitoring and adaptive control

Technical specifications

• Model: T16-U27
• Series: Combyax
• Manufacturer / Brand: Picchi
• Machine type: transfer multi-spindle machine
• Total controlled axes: 45
• Coolant-through-tool at 15 bar
• Multimaterial filtration suitable for lead-free brasses (e.g., CW511L)
• Hirth-lock main rotary table
