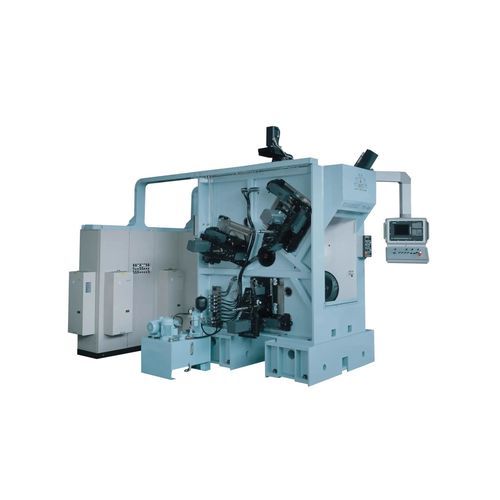

Rotary transfer machine T10-CL9

CNC10-positionwith rotary table

Overview
Combyax T10-CL9 is a flexible transfer machine with 9 CNC machining centers and turret-head tool change. Designed for precision machining of components such as aluminum water pumps, it supports multi-stage operations and processing of different parts within the same production cycle. Its compact cell design facilitates integration in constrained production layouts.

Standard modules installed

• 9 machining centers with 3 controlled axes each
• 3 work directions
• Tool capacity up to 36 tools and capability to process different parts in one cycle
• Spindle motor for rigid threading operations
• 37 axes controlled by CNC
• Tele-service: remote maintenance, tele-diagnosis and remote control systems
• Industry 4.0 readiness: IT interconnection, monitoring of operating conditions and process parameters, adaptive control

Some of the distinctive features
Integration of anthropomorphic robots for automated repositioning of workpieces between processing stages (e.g. OP10 and OP20). Despite up to 27 spindles operating simultaneously, the machine maintains a compact footprint with an outer diameter < 2.4 m, providing cycle-time efficiency, good thermal stability and easy access during tooling setup.

Technical features (summary)
A high-performance flexible transfer platform with 10 stations and 12 machining units, including turret heads with multiple spindles, Hirth-ring locked main rotary table, fixed-clamp vises, high-power spindle motors and coolant-through-tool supply.

Applications

• Automotive components
• Oil-hydraulics
• Other mechanical components sectors requiring precision and high productivity

Technical specifications

• Model: T10-CL9 (Combyax)
• Number of machining centers: 9 (3 controlled axes each)
• Stations / machining units: 10 stations and 12 machining units
• Turret heads: with up to 4 spindles
• Number of spindles operating simultaneously: up to 27
• Tool capacity: up to 36 tools
• Main rotary table: Hirth ring locking system
• Vices: fixed-clamp vises
• Spindle motor power: 7 kW (S1) / 9 kW (S6)
• Installed power: 170 kW
• Total controlled axes: 37
• Coolant supply: through-tool at 18 bar
• Spindle motor for rigid threading
• Robot integration possibility for part repositioning
• Compact machine body: outer diameter < 2.4 m
• Tele-service: remote maintenance, diagnostics and control
• Industry 4.0 readiness: factory IT interconnection, real-time monitoring and adaptive process control
