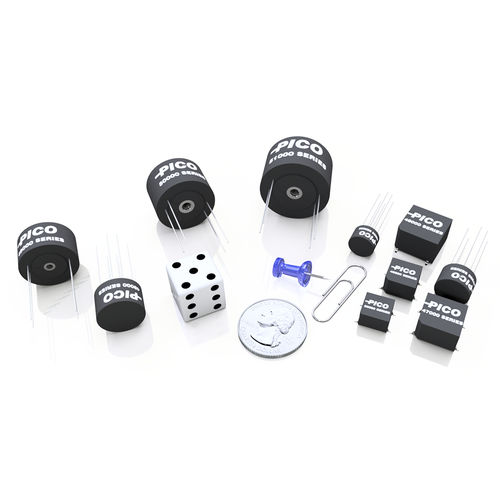

Wire-wound choke 46000 to 52000 Seriesmagneticcommon modeAC
Add to favorites
Compare this product
Characteristics
- Technology
- wire-wound, magnetic
- Electrical characteristics
- common mode, AC, differential mode, shielded, high-frequency, insulated, DC/AC, low-frequency, single-phase
- Configuration
- SMD, through-hole type, low-profile
- Applications
- for electronics, EMI suppression, for switching power supplies, for DC/DC converters, filter, noise suppression, for circuits, aeronautical parts, for automotive applications, for telecom applications
- Other characteristics
- custom-made
- Primary current
Max.: 7,000 mA
Min.: 10 mA
Description
Pico’s Common Mode EMI Chokes are highly effective in suppressing electromagnetic interference and radio frequency interference, where high-frequency noises are blocked to allow DC and low-frequency AC signals to pass through. These noise suppression devices can be offered in common mode or differential mode operations. They are extremely reliable in the performance of electronic systems where security of data and information are crucial, as well as mechanically durable to the integrity of mission systems.
Features
Extreme resistance to impact, shock, and vibration
Manufactured to MIL-PRF-27 Grade 5, Class S (Except Size 0 which is Class V)
High reliability for space and mission critical applications
Ultra miniature in size and minimalistic design
Design layouts in through-hole, or surface mount
Magnetically shielded (through-hole only)
Terminal solderability per MIL-STD-202, Method 208
Options
Screening and qualification criteria to flight standard
Fully RoHS compliant or with exemption 7(a)
Modifications to mechanical design and electrical characteristics
Custom new design and parameters
