Double-column turning center AC series
CNCvertical2-axis

double-column turning center
double-column turning center
double-column turning center
double-column turning center
double-column turning center
double-column turning center
double-column turning center
double-column turning center
double-column turning center
double-column turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
vertical
Number of axes
2-axis
Other characteristics
milling, cutting, high-performance, compact, high-rigidity, double-column, ram, hydrostatic
Diameter

Min.: 3,600 mm (141.73 in)

Max.: 6,500 mm (255.91 in)

Spindle speed

Min.: 60 rpm (376.991 rad.min-1)

Max.: 150 rpm (942.478 rad.min-1)

Axe Z

Min.: 1,250 mm (49 in)

Max.: 3,000 mm (118 in)

Rapids on X

15,000 mm/min (10 in/s)

Rapids on Z

15,000 mm/min (10 in/s)

Nominal power

60 kW, 100 kW, 120 kW, 180 kW, 300 kW (81.6 hp)

Description

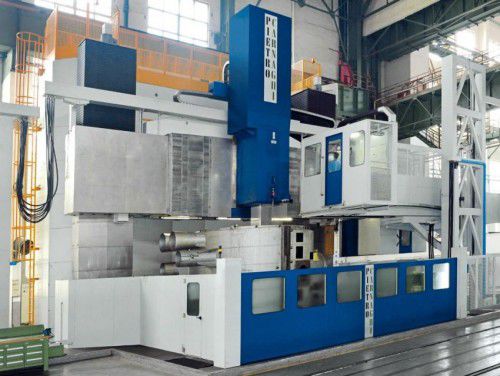

The Pietro Carnaghi vertical turning centre model AC is designed and built in a compact form, with an extremely rigid thermo symmetrical structure, having two columns mounted to the table base. All these elements are assembled together in order to constitute a tough structure ensuring maximum stability and rigidity. The movable crossrail is designed and sized to withstand severe cutting conditions. On the front part two horizontal sliding guides support the vertical ram saddle in its horizontal movement (through hydrostatic pockets).The distance between the superior and the inferior guide way is dimensioned to ensure the maximum cutting performances. The different available configurations (different turning height, ram sections, machining accessories, measuring probes accessories) make the models AC to be the more flexible and useful to any need: starting from the most sophisticated precision in finishing operations (parts for aeronautics), to the most severe cutting conditions (forging rings).
