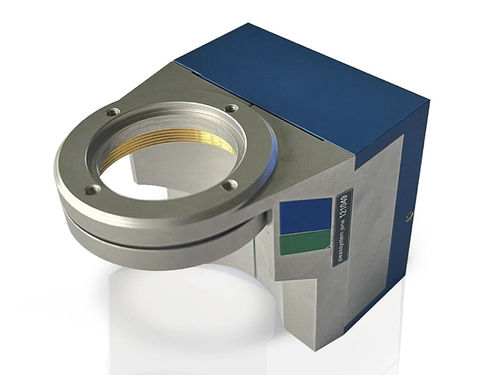

Optical nanopositioner MIPOS 800 series

compact

■ 800 pm focusing range ■ Compact design ■ Resonant frequency up to 100 Hz ■ Easy to attach on microscopes ■ Closed-loop step resolution of 12 m ■ Integrated strain-gauge feedback sensor The MIPOS 800 objective positioner offers a nanopositioning scanning range up to 800 µm in open-loop operation, and 650 µm in closed-loop operation. The positioner can be used with objectives that have a diameter up to 40 mm. A unique parallelogram design guarantees high parallel motion without influencing the optical axis. The precise positioning repeatability of the MIPOS 800 can be guaranteed by the use of the integrated strain-gauge measurement system. The design which includes an integrated preload of the actuator offers high resonant frequency and a highly parallel motion. Due to the unique design of the MIPOS 800, fast scanning applications can be accurately realized with short settling times.
