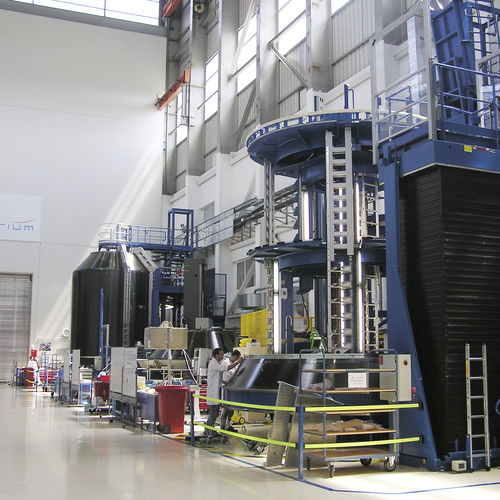

Automatic assembly machine

for industrial applicationsprecisionadjustable

Versatile benches for positioning, drilling, assembly, interpolation milling and automated dimensional control represent the basis of PINETTE PEI know-how. They are used to work on large composite sandwich panels, which are assembled to form the transport structure for the satellites in the Ariane launcher. Height adjustable from 5,000 to 7,000 mm Optimized design to facilitate operator work Maximum dimensions: 6,000 mm diameter 6-axis CNC control Reference surface accuracy + / – 2 mm Axis movement accuracy better than + / – 0.1 mm Optimized design to ensure cleanliness and safety in the work area
