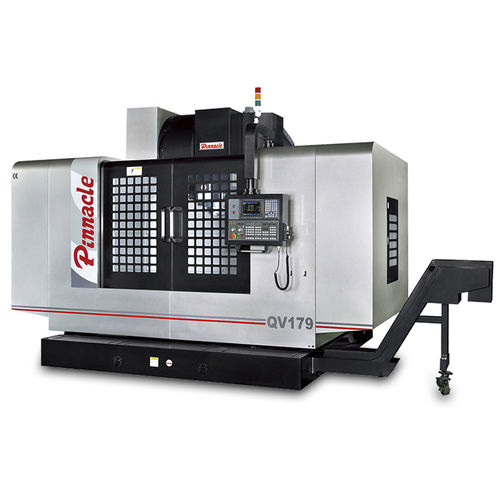

3-axis CNC machining center QV series

verticalISO 524 tools

Now you can get the right VMC's with the right features for extra heavy-duty machining, superior stability and excellent rigidity. Pinnacle box way series VMC's are quality constructed throughout for maximum performance dependability - year after year. If you expect a VMC that will provide higher machining efficiency to reduce production costs, then consider placing a dependable, heavy-duty Pinnacle VMC in your production line. Features X, Y & Z Axis Square Way 4 Slideway on Base The major structural parts are manufactured from high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB. Box ways on the three axes. Way surfaces are hardened to over HRC50 with over 2 mm depth. Counter-balance weight moves on a guide shaft for added stability and straightness accuracy. COUNTER WEIGHT BALANCE SYSTEM Exclusively designed counter weight balance system. The counter-balance weight moves on a guide shaft to assure movement straightness accuracy. There is no vibration in the forward/backwards and in the right/left directions. This creates superior workpiece surface accuracy to meet various mold machining requirements. Patented in Taiwan and China. ASSURES HIGH QUALITY MACHINING Supported by superior precision P4 class bearings, the spindle provides an extra wide range of machining capacity and high speed. Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings' life. The spindle is a cartridge-type.
