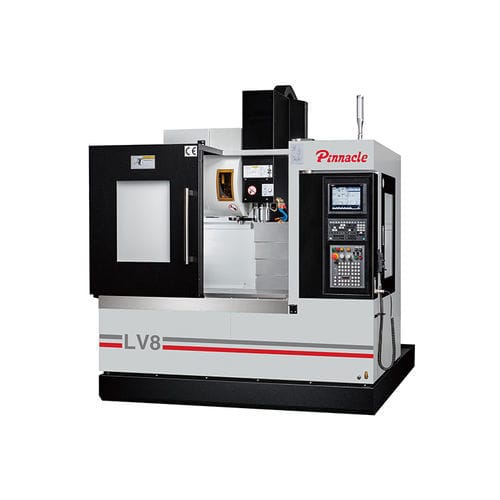

3-axis CNC machining center LV series

verticalHSK-E40ISO 30

When jobs call for highly efficient machining and when outstanding accuracy is critical, a Pinnacle linear way series vertical machining center is the perfect solution. The LV5/LV8 is a multifaceted series. It is not only ideal for smaller factories and machine shops. It covers applications ranging from watch and time pieces to 3C and 4C industries. It is also ideal for manufacturing molds for joints, teeth and bones used in the medical industry. If you are serious about increasing machine productivity and profits, the Pinnacle linear way series can really help you. X, Y, Z axis linear guideway ASSURES HIGH QUALITY MACHINING Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings' life. The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment. Arm Type ATC The 20-tool arm type magazine is activated by electric motor transmitted by U-cam mechanism, featured with the fastest tool change speed and it bi siewxrionL Ensom tool selection. Chips Flushing Nozzles Coolant flushing nozzles on rear inner wall of guard prevent jam of chips during operation. Automatic Lubrication System The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ballscrews and bearings. Splash Guard The full-enclosed splash guard meets environmental protection and CE requirements. It offers users a comfortable working environment. Control System The centralized control panel employs a touch sensing screen for user-friendly operation.
