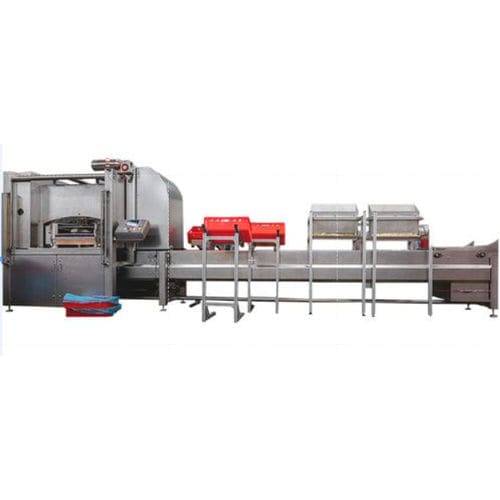

Semi-automatic skewer machine P3000

The PINTRO® P3000 is the newest addition among the semi-automatic skewer machines. It is ideal for industrial major seasonal production quantities of up to 24,000 skewers per shift. The central theme is the traditional appearance of the skewer; constant quality, ergonomics and productivity. 3000 skewers / kabobs per hour Maintains a traditional-style look and feel of the product Ergonomic and hygienic operation All skewers have an even look Fast and safe operation In developing this machine, we took account of the highest possible capacity, an ergonomic, pleasant and safe working method for the operators, simple conversion for making other skewers and, of course, the traditional final result of the skewer. Two master stations are occupied by on the one hand the machine’s operator and on the other hand a team that fills the moulds with ingredients. One operator removes the formed skwers from the installation and performs a visual final inspection. A number of ‘fillers’ supply the moulds with the ingredients. The number of fillers depends on the quantity and diversity of the different components of the skewer. The installation has room for a maximum of ten fillers. We have provided convenient filling towers so that the fillers only need to make as few movements as possible with plenty of autonomy. The HMI display and its menu provide simple controls for e.g. making another type of skewer; it includes instructions and other relevant information such as the productivity. Maximum capacity: 3000 skewers per hour Number of operators: 1 operator + 2 – 10 fillers Skewer weight: 5 to 350 grams Stick length: 150 to 300 mm, diameter 3 to 6 mm Type of stick: wood & bamboo (round)
