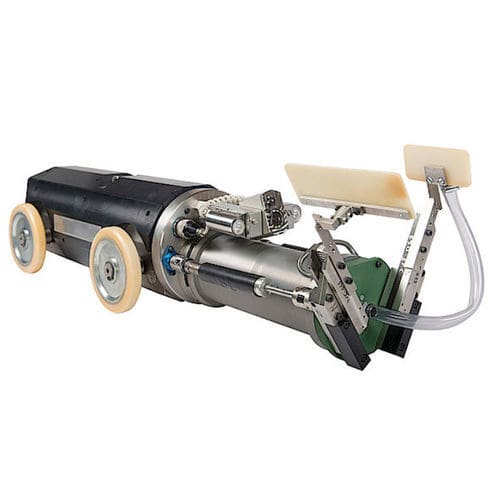

Electric pipe rehabilitation robot SR series

The PI.TRON filling & grouting system enables high-precision and flexible work on partial repairs of damaged areas as well as the rehabilitation of connectors in sewer tunnels with diameters of DN200 to DN800 as well as all known oval profiles. Filling robots SR 178 and SR 300, shield injection robots SM 200 and SM 300, plus an extensive selection of accessories are part of Pipetronics' filling & grouting system. Rehabilitation using the PI.TRON filling & grouting procedure has proven itself several hundreds of thousands of times in rehabilitation practice with similar systems. The two available Pipetronics filling robots are equipped with an axial and longitudinal spatula for filling. Combined with an infinitely variable electrical drive and rotational drive, these tools ensure control with millimetre accuracy that can also be used to rehabilitate complex types of damage in a lasting and form-fitting manner. A large selection of accessories is available for implementation, for instance shuttering without hole or with hole diameters of 100, 120, 150, 180 and 210 mm, sleeve shuttering or tension belt / gear racks for all diameters from 200 to 800 mm. The hydraulic and electrically powered milling robots from Pipetronics can be retrofit with the filling & grouting system to become all-in-one systems. In addition, the filling & grouting system can be deployed as a modular solution in combination with milling robots produced by other manufacturers. In this way, cutters made by other brands can be upgraded with reliable technology at a fair price. The PI.TRON procedure has proven itself in the rehabilitation of domestic connections with a shuttering that can be connected
