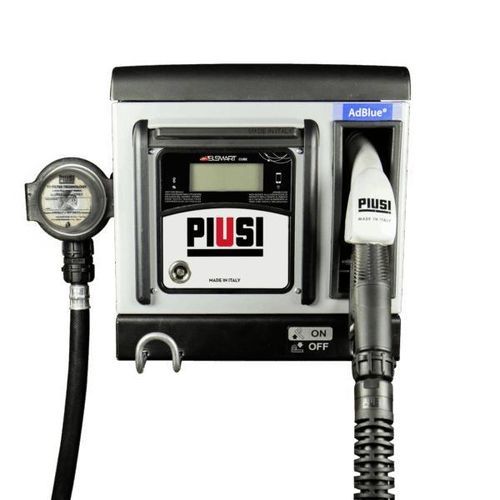

Liquids dispenser CUBE ADBLUE B.SMART

electronically controlledelectricautomatic

Overview
CUBE AdBlue® B.SMART is the compact, connected AdBlue dispenser for private use that combines the practicality of the CUBE range with B.SMART technology. It allows dispensing, monitoring and consumption control from a single cloud platform, removing paper records and enabling remote checks from PC or smartphone.

Cloud management & users
Integrated B.SMART Fuel Management System records every dispensing operation automatically and makes data available online. The dispenser includes 10 users out of the box so access rights can be assigned to staff. B.SMART provides a single, up-to-date view of operating costs for diesel and AdBlue® when used together.

Dispensing components
The unit is driven by the Suzzarablue pump AC (self-priming electric diaphragm pump) with a flow rate up to 30 l/min. It is fitted with the SB325_X automatic nozzle (patented, with break-away system) to ensure safe and precise dispensing. A dedicated 3D filter for AdBlue® retains impurities and keeps the product compliant with SCR engine requirements.

Design & installation
Modern, compact and versatile design suitable for farms, construction sites and structured fleets. Standard delivery hose: 3/4" with 6 metres length for freedom of movement. Installation can be completed with a dedicated pedestal or a wall support kit (available as accessories).

B.SMART ecosystem & add-ons
CUBE AdBlue® B.SMART is part of the B.SMART ecosystem. Add-ons are available to extend the Fuel Management System functionality and optimise refuelling management from data logging to reporting.

Features

• MULTI-USER MANAGEMENT
• 3D FILTER AVAILABLE
• COMPACT DESIGN
• INTEGRATED SOFTWARE B.SMART
• IP55

Spare parts and manuals (excerpt)
Product code | Description | Parts | Manuals
F00598100 | CUBE ADBLUE B.SMART 230V/50HZ 10 ACCESS | Find parts (refer to spare parts section) | Find manuals (refer to manuals section)

Technical specifications

• Model family: CUBE AdBlue® B.SMART
• Fluid: AdBlue®
• Application sectors: Agriculture, Logistic, Mining & Construction
• Integrated management: B.SMART Fuel Management System (cloud-based)
• Users: 10 users included
• Pump: Suzzarablue pump AC, self-priming electric diaphragm pump
• Maximum flow rate: up to 30 l/min
• Nozzle: SB325_X automatic nozzle (patented) with break-away system
• Filtration: Dedicated 3D filter for AdBlue®
• Hose: 3/4" delivery hose, 6 metres long
• Protection rating: IP55
• Design: Compact, suitable for pedestal or wall installation (accessories)
• Compatible add-ons: B.SMART ecosystem add-ons for extended functionality
• Spare parts reference (example): F00598100 (CUBE ADBLUE B.SMART 230V/50HZ 10 ACCESS)
